Balancing Tools

vibration instruments - balancing tool - X-Balancer

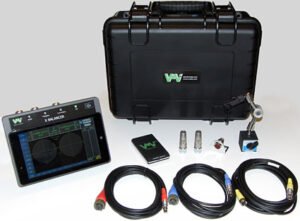

X-Balancer™

The Wireless X-BALANCER can be connected to both Windows tablets and PC’s, as well as Android tablets or even a mobile phone!

Safe to use, users don´t need to be close to noisy and hazardous environments, they can be up to 20 meters away from the machine being balanced.
Don´t risk anything, use the safest device on the market!

• Easy to use, all necessary knowledge is available in the hand unit
• Can be used for all rotating machines like Pumps, Fans, Mills, Mowers, Stirrers, Blowers
• Balancing can be performed in accordance with ISO Standards 1940
• Easy to aff ord, best price/performance ratio
• Balancing in 1 or 2 planes
• Directly change of measuring unit
• Each balancing can be stored in the Machine Library
• Weight distributions to fixed positions
• Tool library with tool compensation are available
• Ability to measure the spectra before and after balancing to present spectra graph into the balancing report
• 12 hours of continuous battery life.
• Th e X-Balancer includes all necessary Cables and Sensors to perform balancing
• All standard rotors are available in software, which simplififi es implementation
• X-Balancer communication are certifi ed in almost all countries in the world
• Balancing results can easily be reported
• 2 Years Warranty

Features of VIBER X5 MK III™:

  • Embedded Thermal Camera
    Read more about the the features here
  • FAST
    VIBER X5 MK III™ uses a new generation of floating point DSP processor from Texas Instruments (C6700 series), which ensures a very short data processing time.
  • RUGGED
    Made for rough use in hard environments. IP65 casing and operating temperature of -20 to +70 °C

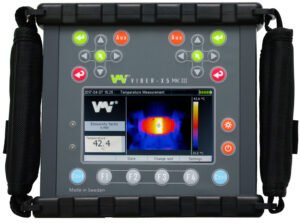

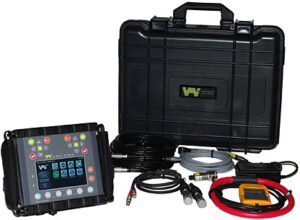

VIBER X5™ MK III

VIBER X5 MK III™ is an advanced vibration analyzer, together with SpectraPro® PC software it provides a complete package for predictive condition maintenance.

VIBER X5 MK III™ is capable of measuring, processing, displaying and storing a wide range of measurement parameters. You can collect various types of field data; examples are vibration information, bearing analyze, temperature, speed and other process variables that enables you to expand its functionality by adding new measurements to improve your analysis capabilities. You may also use the VIBER X5 MK III™ for 1 or 2 plane balancing.

VIBER X5 MK III™ perfectly fits with the SpectraPro® multipurpose software and it is also compatible with our other analyze instruments.

  • COMPATIBLE
    VIBER X5 MK III™ uses SpectraPro® condition monitoring software to manage data. Using an existing database, it may be used together with Easy Viber, Easy Balancer and X-Viber instruments, just the way it is, with no other changes.
  • EASY TO USE
    VIBER X5 MK III™ has a graphical user interface, a right and left hand operated keyboard and a user friendly context sensitive HELP.
    The measurements are grouped so a beginner easily can handle them, but also the experienced users gets satisfied by the advanced measurement menus.
  • FLEXIBLE
    The instrument works with al standard vibration transducer on the market.
    In the Route measurement you may define a customized transducer for each measurement point; this makes most signals accessible, in order to get additional information that might improve the condition measurement quality.
    The instrument is compatible with any external tachometer and also with standard 4-20 mA process transducers (flow, pressure, temperature and so.).
  • RELIABLE
    VIBER X5 MK III™ is an essential tool for the monitoring of machine health. It has a high performance/ cost value and offers reliable measurements to ISO standards in combination with a range of smart features.

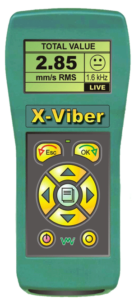

X-VIBER™ standard

X-Viber is a more advanced instrument used for condition monitoring with more advanced software for analysing measurement and also one plane balancing capability. A complete delivery is with sensors and software, there are features that can be added to the standard instrument.

Analysis and Route instrument

PC communication and analysis with
the X-Trend software, which is delivered
along with the X-Viber.
• Create Route and Editdatabase
• Extended analysis with level and
frequency of the 5 highest vibrations
• Analysing the trend information
Automatic pre-made reports for:
• Trend
• Machine history
• Transfer report
• None measured machines

Selectable:
• Measuring unit
• Average
• Frequency range
• Alarm levels

Options that may be added:
Data logging, save up to 15000
measurements
Amplitude and phase measurements
Spectrum storage in route
Advanced analysis software SpectraPro

A large step towards a well planned machine maintenance.
With X-Viber, measurements are fast and easy, because of the Route function.
Vibration level, temperature and RPM is measured with the same instrument, which simplifies the measurements.

Balancing, Spectrum measurement and Analyzing are also possible with X-Viber.
For balancing, a balancing kit is available.

Features:

Route via X-Trend software.
Total Level.
Envelope.
Bearing Condition Value
Analysis
Temperature
Speed
Off Route Spectrum
Single Plane Balancing
Spectrum in Route (option)

X-ViberPro™

Instrument with same functions as X-VIBER™ standard, but additional features like data logging, Amplitude and Phase, Balancing software and more advanced software, SpectraPro. Amplitude and Phase makes it possible to make an ODS (animation) analyse, using our VibShape.
