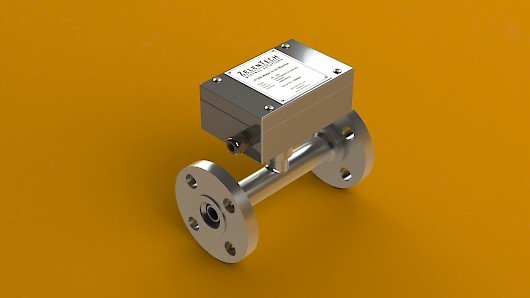

zelentech water in oil monitor - zt100-

ZT-100 Water In Oil Monitor

ZelenTech ZT-100 Water In Oil Monitors are designed to detect water contamination in virtually any kind of oil or fuel. It works with diesel, heavy fuel oil, engine lubrication oil, gear box oil, hydraulic oil, turbine oil, vegetable oils and many more.

Our meters comes in where water content levels are, or can be expected to, exceed saturation levels and therefore renders Saturation Meters unusable. With a ZT-100 you can measure way beyond the saturation point of the oil. ZelenTech ZT-100 Water In Oil Monitors are excellent for monitoring lubrication and hydraulic systems in heavy machinery and ships.

Dedicated versions are available for Vegetable Oil / Palm oil as well as for Water In Fuel Injection (WIFE)

Most other applications can be handled by our generic versions. Contact us for help in choosing the correct version for your task.

WATER IN OIL MONITOR SPECIFICATIONS



ParameterValue
Response time1 sec
Sensitivity0.01%
Repeatability0.1%
Output4-20mA + HART
Power Supply24VDC (Loop Powered)
Power Consumption0.66W Max
Temperature (Media)+150° C (250 with High Temp Option)
Temperature (Ambient)+60° C
Ingress ProtectionIP66
Measurement Range0-25% or 0-100%
Nominal Sizes1 to 6 inch or DN25 to DN200
Material (Standard)316L
Seals and electrical insulators                                          PEEK



WATER IN OIL MONITOR CONFIGURATIONS

The Water In Oil Monitor can be adapted to many different configurations. The ZT-100 can be supplied with threaded or flanged connections.

  • Measurement of total water in any form no matter if dissolved , free or emulsified
  • Monitors water contamination levels for hydrocarbon products
  • Guards your rotating / moving equipment from damage due to water contamination
  • Response time 1 second
  • Low power 24 VDC
  • Temperature compensation
  • Flexible detection range
  • Detection from 0.01%

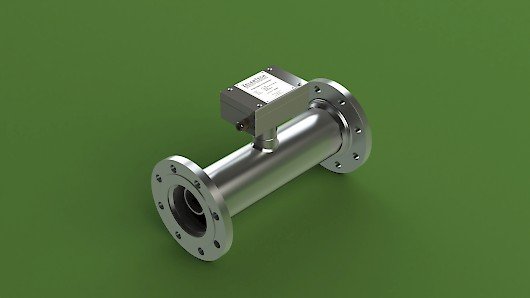

ZT-100 Water In CPO Monitors

The ZelenTech ZT-100 Water In Palm Oil / CPO monitor offers real-time, fast response monitoring suitable for CPO and vegetable oils.

The monitor can be used in various process stages such as receiving bay, storage tanks, filtering, drying, crystallizing and more. The instrument is developed to accurately measure the content of water in ALL forms, free or dissolved. Awareness provides for preventive measures to take place. The advanced microprocessor enables fast, reliable and drift-free monitoring.

ZT-100 CPO GENERAL DATA

ParameterValue
Principle of OperationHigh Frequency Digital Capacitance
Resolution (Low Range)0.001%
Accuracy (Low Range)0.01%
Repeatability0.01% Absolute
Max Water (Low Range)25%
Temp Compensation Range          >0°C – 180°C



ZT-100 CPO SPECIFICATIONS

ParameterValue
Response time1 sec
Sensitivity0.01%
Repeatability0.1%
Output4-20mA + HART
Power Supply24VDC (Loop Powered)
Power Consumption0.66W Max
Temperature (Media)+150° C
Temperature (Ambient)+60° C
Ingress ProtectionIP66
Measurement Range0-25%
Nominal Sizes1 to 8 inch or DN25 to DN250
Material (Standard)316L
Seals and electrical insulators     PEEK

ZT-100 CPO MECHANICAL DATA

ParameterValue
Wetted Steel Material316L Standard (More exotic materials available)
SealsPEEK
Max. Working PressureUp to Class 1500#
Max. Fluid Temperature180°C Standard (240°C Optional)
Max. Ambient Temperature      65°C
Process ConnectionANSI, DIN, JIS, Threaded



  • Water in Hydraulic Oil
  • Water in Lubrication Oil
  • Water in Vegetable Oil
  • Water in Palm Oil / CPO
  • Water in Crude Oil
  • Water in Diesel
  • Water in Hydrocarbons
  • Water in Transmission Fluid
  • Dielectric Constant Monitoring

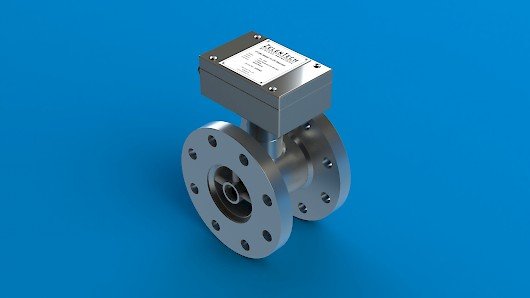

ZT-100 Water In Fuel Emulsions

The ZT-100 WIFE line of meters are designed to measure and control Water In Fuel Emulsions (WIFE).

Our units have successfully passed trial stages for large Marine Engine manufacturers and recently been deployed in new-built ships. Container ship SafMarine Chambal (MAERSK Owned) being the worlds first new-build fitted with Water In Fuel Injection already from the ship-yard in Korea. The ZT-100-Wife being an integral part in the system.

WIFE SPECIFICATIONS

ParameterValue
Response time1 sec
Sensitivity0.01%
Repeatability0.1%
Output4-20mA + HART
Power Supply24VDC (Loop Powered)
Power Consumption0.66W Max
Temperature (Media)+150° C (250 with High Temp Option)
Temperature (Ambient)+60° C
Ingress ProtectionIP66
Measurement Range0-25% or 0-100%
Nominal Sizes1 to 6 inch or DN25 to DN200
Material (Standard)316L
Seals and electrical insulators           PEEK

WIFE CONFIGURATIONS

The Water In Fuel Monitor can be adapted to different configurations. It is common to use the ZT-100 Wife on very hot pipes so we provide an option with extended necks keeping the electronics away from the heat. The ZT-100 can be fitted with a variety of connections to suit ships constructed anywhere in the world.

  • Oil Purification
  • Marine Fuel Emulsion (WIFE)
  • Marine Engines
  • Marine Oil Lubrication Systems
  • Turbine Lubrication Oil (Power Plants)
  • Refineries and Petrochemical
  • General Oil Analysis Systems
  • Product Quality Check
  • Gas Condensate Monitoring
  • Pulp and Paper
  • Steel Mills (Lubrication, Quenching, Morgoil)
  • Aviation Fuel
