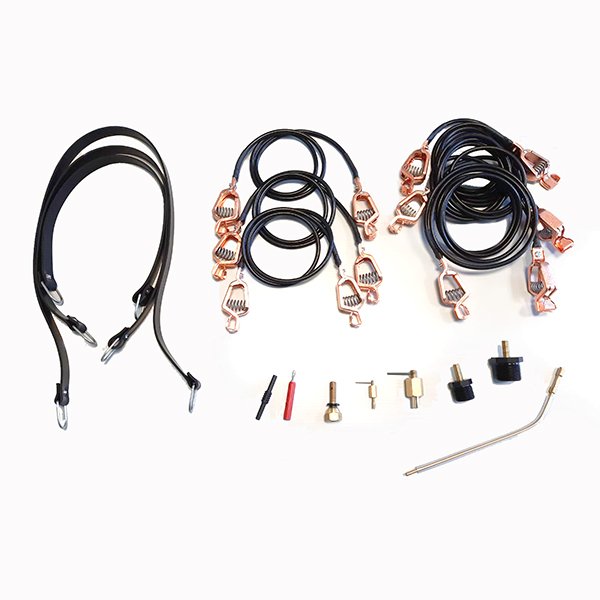

Bushing Tap Adapter Kit is designed to perform Capacitance and Tan Delta tests on power transformer bushings The kit can b e used with the following ISA Test Set STS 5000 TD 5000 STS 4000 TD 5000 TDX 5000.

Characteristics

ISA Bushing Tap adapter kit is composed from:

• 1x male to female bushing adapter
• 1x female to female bushing adapter
• 1x 2.5 cm long bushing tap adapter
• 1x bushing adapter probe
• 1x 1.9 cm long bushing tapadapter
• 1x 3 hot collar straps
• 1x set of mini bushing tap adapter
• 1x 3 non insulated 1m long leads
• 1x bushing tap adapter
• 1x 3 non insulated 2m long leads
• 1x thermo hygrometer

Tests performed

• Capacitance and Tan Delta tests

Application

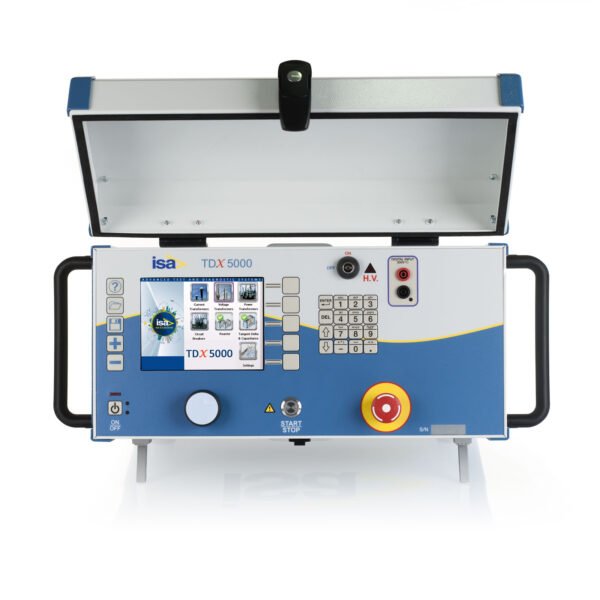

TDX 5000 is developed as a compact solution for high voltage Capacitance and Tan Delta (Dissipation Factor) measurements. Using the reactor option, TDX 5000 can also perform tests on rotating machines.

Main features

• Fully automatic
• Variable output frequency: 1 – 500 Hz
• Output voltage up to 12 kV
• Tan Delta, capacitance, dissipation factor measurements and exciting current test
• RCTD – compensating reactor module allows increasing the test current and getting the maximum test voltage with high capacitive burdens
• PADS – Power Apparatus Diagnostic Software for automatic testing, assessment and report
• USB interface and Ethernet interface for PC connection
• Patented technology for capacitance and Tan Delta measurement
• Light and compact

Tests performed

• Tangent Delta
• Capacitance

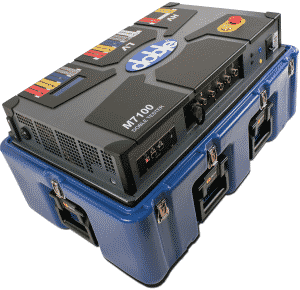

The Doble M7100 High-Voltage Asset Analyzer is your complete solution for high-voltage testing.

With an intuitive design and dual high-voltage leads, the M7100 greatly reduces the number of ladder trips technicians are exposed to per job – sometimes cutting the number to nearly one third. This significantly improves the safety and quality of field work by limiting exposure to the workforce and reducing errors.

FEATURES OF M7100

• Built-in Low Voltage/High Current Multi-Frequency Source
• Combined Source and Measurement Test Leads
• True 4-Terminal measurements
• Intuitive design where the color or number is the connection
• Patented dual high-voltage leads allow you to switch between Source and Measurement – both capabilities are within each HV lead
• Enhanced safety features include new safety switch design

BENEFITS OF M7100

• Finish testing in a third of the time
• Maximize your outages and limit safety risk
• Replace a truck full of instruments and cables
• Greatly reduce the number of ladder trips technicians are exposed to per job

DOBLE TEST ASSISTANT (DTA) SOFTWARE FOR M7100

• Collect, analyze and manage test results
• Easy-to-use test plans for two dozen types of HV test apparatus
• Doble QuickHelp pictures for lead connection and test setup guidance
• Manages data by establishing library of every result you collect with DTA

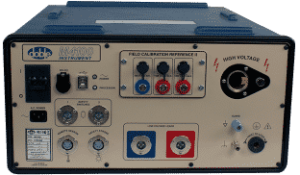

Power Factor/Tan Delta Test set

The Doble M4100 and M7100 Power factor instrument, also known as Tan delta tester is the industry standard for power apparatus and insulation testing. Using a unique combination of test capabilities and artificial intelligence analysis software, Doble engineering Tan delta testers are used and accepted all around the world

APPLICATION: High Voltage Apparatus Testing

KEY FEATURES

• Power Factor/Tan Delta testing to confirm insulation integrity and quality
• Capacitance testing to measure physical changes that may have occurred to the apparatus
• Turns ratio testing to detect shorted turns or winding damage
• Leakage reactance/short circuit impedance testing to evaluate winding deformation
• Single phase excitation current testing to evaluate the transformer magnetizing circuit
• Capacitor bank testing to detect deteriorating or failed capacitors within a bank
• Easy and accurate testing with Doble Test Assistant (DTA) software

BENEFITS OF M4100

• Safety is our priority with safety switches, power strobes and ground earth relay interlocks
• Eliminates the effect of varying electrostatic interference with patented Line Frequency Modulation, which makes measurements at a frequency above and below the system frequency
• Reliability & Accuracy – generates its own clean test signal using an internal waveform generator for reliable results and stable readings
• Software firmware system senses abnormal current, temperature and voltage operation even before a user would notice
• Instantly analyze your test results, providing clear recommendations and explanations with FRANK™, the First Response Analytics Knowledgebase
