Meter Tester

The MTS-1010 and MTS-1030 Multi-function power meters are portable, digital meters developed specifically for power related applications in the relay, metering and Instrumentation & Control departments. The MTS-1010 and MTS-1030 can be used to verify metering and relaying circuits for accuracy, polarity and phase. They can also be used to do timing checks or monitor the outputs of unmetered test equipment. When used in conjunction with the MTS-1200 3 Channel Voltage/Current Source (and optionally the MTS-1300 3 Phase Voltage Source) they form the basis for an economical and capable protective relay test set.

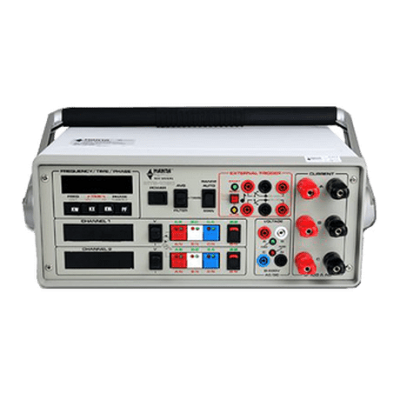

MTS-1010 Features

• Measures phase angle between 2 voltages, 2 currents or a voltage and a current
• Includes carry case and fused voltage test leads
• Integrated timer and audio indicator with intelligent triggering

MTS-1030 Features

• Multi-phase measurement capability; measures any L-N or L-L voltage or current without swapping leads
• Phase rotation indicator
• Slip frequency and high-speed phase measurement standard
• Powered from AC line or built-in battery supply
• Includes carry case, and fused 4 color voltage test leads
• Powerscope software included

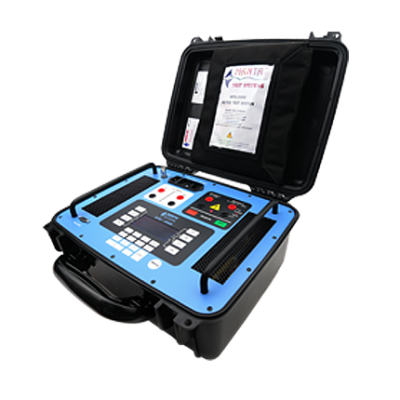

The MTS-2000 is a highly-portable instrument for testing and calibrating transducers and panel meters. It has two precision AC/DC sources. One channel provides up to 150 volts RMS. The other channel is switchable, supplying up to either 150 volts RMS or 5 amps RMS. For high-voltage meters, you can operate the channels in series to get 300 volts RMS. That’s enough to test and calibrate nearly all the panel meters and transducers found in power utility substations.

FEATURES

• Tests and calibrates the following meters and transducers: voltage, current, power, frequency, power factor
• Generate 0-20mA transducer currents
• Simple and intuitive user interface
• “Quick Set” to cycle through test values for rapid testing
• Small, lightweight and rugged
