DayCor® ROM HD

rotary/fixed wing aircraft inspection instruments

Models: ROM HD | ROM EYE HD

HD Aerial Inspection System in a Stabilized Payload

DayCor® RomHD is uniquely designed with provision for precision and stability. ROM HD is an encapsulated payload with a selection of the most reliable remote sensing technologies.

rotary/fixed wing aircraft inspection instruments

Practical, Powerful, Precise, Affordable

Rotary/Fixed Wing Aircraft Inspection Instruments

DayCor® ROM HD is a premium choice for aerial inspections to remotely detect faulty electrical & mechanical installations. The collected data includes imaging and detailed radiometric readings of multiple detection technologies encompassing multifaceted maintenance aspects.

DayCor® ROM HD is a powerful high-speed inspection solution for aircrafts, equipped with combinations of outstandingly highly sensitive, high definition (HD) sensors in a gyro stabilized payload platform.  ROM meets the need for stability, accuracy, functionality, convenience and qualitative data collection. The default solution has 5 sensors, including an exclusive bi-Spectral UV-HD camera with optical zoom, a photo camera with extended megapixels and zoom lens, remote 3rd generation Geo recorder, provides high-resolution color video and infrared imaging, Laser range finders etc., It is easily installed/removed to meet the aircraft’s multi-mission demands.

Ofil offers its customer the option to select their preferred sensors and incorporate them in the payload. The gimballed payload is designed by the RTCA DO 160G environmental standard. ROM can be used for fire detection and with some adjustments for oil spill mapping.

For over a decade, Ofil designs and manufactures modules of airborne systems for electrical utilities, environmental organizations and fire fighters, worldwide.

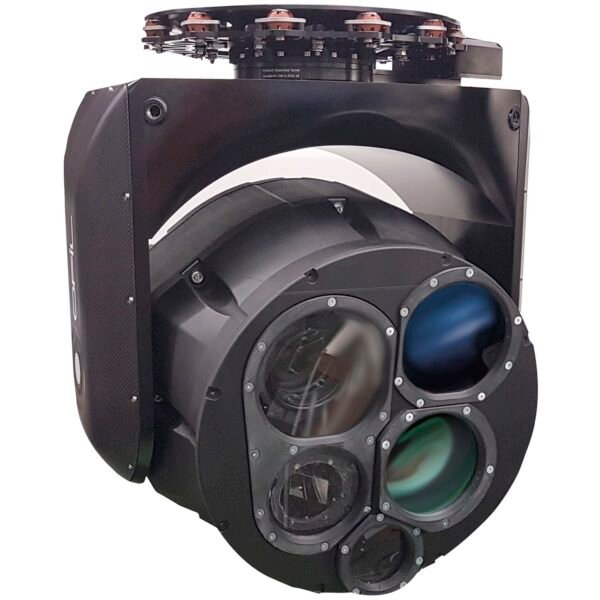

ROM HD

A stabilized gimbaled payload with multiple HD sensors: HD Video camera | HD IR |HD UV | HD Photo

ROM EYE HD

A bi-spectral UV-Visible HD sensor for airborne systems

Enhanced Efficiency with Every Job

Ofil developed a multi-sensor gimbal specifically for airborne surveys and inspection of electric utility infrastructure. ROM HD is capable of high-resolution color video, infrared and ultraviolet imaging, as well as still photography. The incorporated technologies are efficient for fire and emergency management, for mapping fire lines, assessing rate of spread and identifying heat sources.

Excellent Data Acquisition

The outstanding stabilizing architecture ensures the acquisition of high-quality imagery on the move, smooth and without jittering. The hi-sensitive detectors ensure data accuracy. The selected complementary technologies ensure comprehensive true representation of the real state of the inspected infrastructure.

Ergonomically Designed for Aerial Inspection

Investment of skill & resources in combination with professional workmanship resulted in a unique incomparable remote control.  This smart remote control is very easy and simple to maneuver. Functions respond instantaneously to the commands, as expected from a fast-moving working platform.

Beyond the Limits of Human Eyes

ROM HD extends our viewing capabilities letting us see the full spectral range starting at Ultraviolet short waves and up to the longer Infrared waves. Each wavelength adds typical specific information. The consolidated information becomes valuable only in the context of power line inspections where corona PD on the one side and hot spots on the other have meanings.  ROM HD provides for optimal architecture of high level multiple complementary imagery technologies.

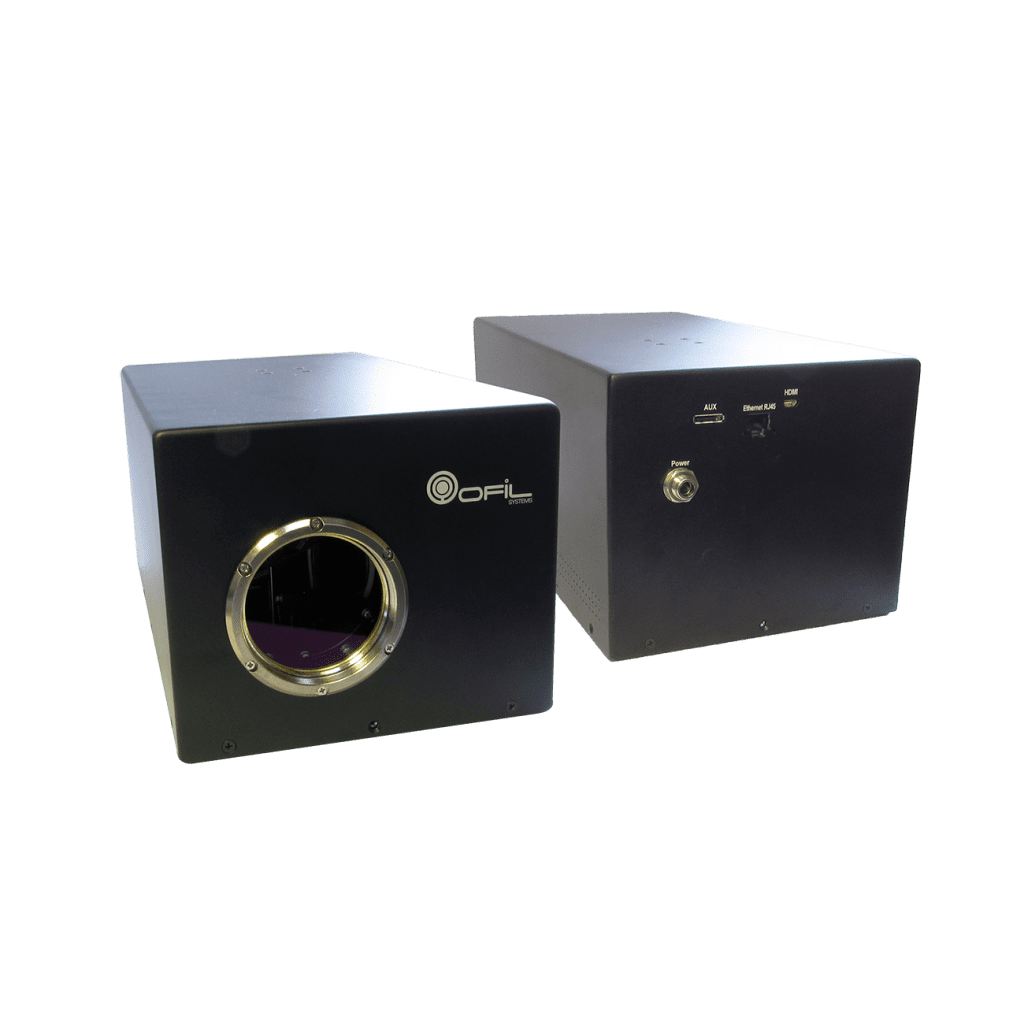

DayCor® ROM EYE HD

Aerial Corona Camera Core

ROM EYE HD is an OEM bi-spectral UV-Visible HD imaging block corona camera.

ROMeye HD is a corona imager that incorporates a UVc detector and a HD visible camera allowing seeing UV corona discharges in daylight and recording their sight. Corona is invisible to the human eye and can only be seen with bi-spectral UV-Visible corona imagers.

Rotary/Fixed Wing Aircraft Inspection Instruments

ROMeye HD is a corona imager that incorporates a UVc detector and a HD visible camera allowing seeing UV corona discharges in daylight and recording their sight. Corona is invisible to the human eye and can only be seen with bi-spectral UV-Visible corona imagers.

ROMeye HD is a high-end camera core that incorporates Ofil’s proprietary DayCor® technology augmented by additional features to be qualified for flying conditions. The camera provides pinpointed information about UVc corona signals on remote inspected objects while on the move. ROMeye HD records HD video clips continuously without overheating, storing them onto an onboard SD card. The HDMI interface is used to display findings on an external monitor. Control over the camera is achieved through a selection of communication protocols. Moreover, its small dimensions, vibration & shock endurance, firmness and robust structure make it fit for a wide range of airborne gimballed payloads. ROMeye HD is an excellent choice for organizations that own airborne gimbaled payloads and wish to introduce corona detection capability.

ROMeye HD is a premium choice for organizations that build their own solution with selected detectors, or wish to replace existing system with a newer modern camera. Either way, Ofil provides full technical support to assist with integration.

D.I.Y Add Corona Detection Capabilities to Your System

  • HD camera
  • Light weight
  • Recording & playback
  • Highest sensitivity to UV
  • Built-in recorder
  • Bi-Spectral UV-Visible
  • Fit for speedy inspections
  • Corona events counting
  • Powerful optical zoom
  • Camera core for OEM
OPTICAL PROPERTIES
Sunlight RejectionAbsolute – at all sunlight and all weather conditions, target can be inspected with the sun in the field of view
Minimum Discharge Detection1pC @ 15 m, Innogy SE – Eurotest, Test Regulation IEC 60270:2000 PD Measurement
Minimum UV Sensitivity1.9 x 10-18 watt/cm²
Fields of View H x VH: 10º – 1.6º | V: 5.6º-0.9º Continuous. UV & visible channels synchronized
FocusFull manual and auto focus for both UV & Visible channels
UV Zoom2x (Opt.), 6.25x (Dig.), Slaved to the visible channel, continuous zoom
UV Display ColorsPoly chromatic: Red, Green, White, Black, Yellow
Spectral Range240-280nm
UV/Visible Overlay AccuracyDeviation < 1 miliradian
Visible Zoom25x optical & digital, continuous
Noise SuppressionYes
I/O
Video InterfaceHDMI
Control Functions1GB Ethernet, RS232, USB, Inbound/Outbound, Wi-Fi
Media Format
VideoHD 720p 60fps, MOV
Image FormatJPG
StorageFAT-32, exFAT
PHYSICAL CHARACTERISTICS & POWER SOURCE
Storage and Operation Temp-200C up to +550C | -4ºF up to +131ºF
Block Camera Weight1650 gr | 3.10lb
Camera Core Weight1265 gr | 2.12lb
Camera with Enclosure Dimensions L x W x HL300 x W160 x H135 mm | L11.8″ x 6.3″ x 5.3 “
Nominal Power Supply & Consumption12V DC, 12 Watts
Vibration and ShockETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64

Hi sensitivity to corona

Recording & playback​

Visible & UV zoom​

Manual and auto focus​

Light weight, slim​

Solar blind



Video out to external monitor​

Remote Control

Heavy Duty

HD

HIGH SPEED INSPECTION

ROMeyeHD transmits HD video on-the-fly, without image processing nor frames integration. The resulted videos are sharp, showing pinpointed information without smearing even during high speed motion.

ENJOY ENHANCED INSPECTION FEATURES

ROMeyeHD has a powerful optical and digital zoom for both visible & ultraviolet spectral ranges, and interchangeable fields-of-views.

HIGH SENSITIVITY TO PD UV DISCHARCE

ROMeyeHD is a solar blind bi-spectral UV-Visible camera that incorporates Ofil’s exclusive proprietary DayCor® technology [Registered Patent EP1112459B1]. ROMeyeHD provides reliable accurate data, showing the original occurrences of corona anchored to the emitters, operating continuously without overheating.

EASY INSTALLATION

ROMeyeHD can be mounted onto existing gimbals or on any standard ¼” thread tripod mount . Installation is simple and standard.

REMOTELY CONTROLLED

ROMeyeHD is controlled through a set of communication commands: RS232, Ethernet or Wi-Fi.

RECORD INSPECTION AND DOCUMENT FINDINGS HD QUALITY

ROMeyeHD records High Definition videos with corona events count, date & time and (if attached) external GPS. Videos are stored internally onto a portable memory and transmitted to a remote monitor.
