Thermographic Inspection Camera
KT-650 55mm lens
The Sonel KT-Series Thermal Imagers are budget-friendly yet offer highly accurate temperature measurements. Robustly designed and constructed they are ideally suited for:
- troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment,
- monitoring the thermal performance of industrial manufacturing processes,
- identifying overheating of mechanical and electro-mechanical components,
- inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests,
- locating hidden heat sources (of people, animals, objects) in dark / low-light conditions.
KEY TECHNICAL FEATURES
- 5’’ wide color touchscreen with no image cropping, adjustable viewing angle in all 3 axes
- High resolution: 640 x 480 pixels
- Temperature measurement to 1472°F or (optionally) 3632°F
- Record still images, or videos
- Store images or videos to SD card or PC
- Choice of image: IR, visible, picture-in-picture, and MIF
- Choice of color palette
- Adjust emissivity, set isotherms, and alarms.
- Removable Li-Ion battery with 4 hour working time
- High brightness display gives detailed information in high ambient light or outdoors
- 5 Mpix visual camera
- GPS, digital compass, LED flashlight, and laser pointer built-in
KT-400 40 mm lens
Regardless of whether you take photos or record videos, the newest cameras supplied by Sonel, equipped with modern detectors, a wide range of temperature measurement and high-quality lenses, ensure highly detailed images and accurate measurements. The cameras are available in several versions, thus enabling the appropriate configuration for the user’s needs. More to see, less to hold. A large display combined with innovative data processing electronics is placed in a compact housing, thus ensuring a perfect balance between high performance and small dimensions – the best choice for everyday use. Moreover, due to the centrally located navigation button supported by a menu on the touchscreen, this model ensures simple and intuitive operation. Thermal imaging is not everything. Cameras are additionally equipped with visual lenses and related image mixing technologies: PIP, MIF. Support from the built-in LED torch and laser improves operational quality by facilitating photography and then image interpretation. The picture is just the beginning. The built-in report module allows for the preparation and printing out of reports directly from the camera. Built-in communication interfaces ensure constant communication between the camera and the computer or mobile device, also over a wireless network. Thanks to state-of-the-art technologies and solutions, the cameras ensure full control and flexibility in various situations, and are an ideal tool for both novice users and professional thermographic inspectors.
KEY FEATURES
- high sensitivity of detectors and a wide temperature range
- comprehensive image analysis tools
- intuitive user interface
- IR video recording (on the SD card or computer disc)
- built-in report module
- different imaging modes: IR, visual, PIP, MIF
- built-in visual camera: 5 Mpx
- built-in: LED torch, laser pointer
- interfaces: Micro USB2.0, Wi-Fi, Gigabit Ethernet, Mini HDMI, slot microSD
KT-80 Thermal Imaging Camera
Sonel KT series is an efficient, budget-friendly and professional infrared camera.
This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes in an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment and others.
FEATURES & BENEFITS
- Friendly UI, easy to use without training,
- Affordable as entry level diagnostic tool,
- Removable large capacity Li-ion battery,
- 4 hour working time,
- 3.5’’ large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight,
- Rugged and compact design, metal internal structure,
- Standard Micro USB interface for data transmission and charging,
- Wi-Fi connection (Optional)
APPLICATIONS:
- Electric inspection and diagnosis,
- Building inspection and diagnosis,
- Mechanical equipment maintenance,
- Manufacturing process service,
- Petrochemical industry maintenance.
The S1 is a Smart Thermal Camera from SATIR as a part of a new R&D development to make thermal imaging smart. It has an open android platform making it an easy to use device to suit all level of thermal imaging users. It has an 256×192 IR detector which will deliver 49,152 pixels to the end-users screen. It also features a 48MP Digital Camera allowing the device to be multifunctional. It has great storage for videos and images with a memory capacity of 256GB. It also has a good temperature range of -20°C ~ + 550°C. With a measurement accuracy of ±2°C or ± 2% of readings.
Key Features
- Smart Device Platform
- Open Android Platform
- Easy to Use Device
- 256×192 IR Detector
- 48MP Digital Camera
- Temperature Range of -20°C ~ + 550°C
Entry Level Thermal Camera | D160 Pro
The D160 Pro is SATIR Newest Entry level thermal camera. This model is based on the D160-F that was a camera that became popular during the beginning of the Covid-19 Pandemic. End-Users liked the easy to use interface and lightweight, one-handed operation. Following on from this feedback we developed an industrial model to meet growing demands for a user friendly entry level thermal camera that can be used in surveys for facilities management companies, used by maintenance engineers and tradespeople such as plumbers and electricians.
The D160-Pro has a 160×120 IR detector with a temperature measurement range of -20°C ~ + 550°C. It has a long battery life of up to 8 hours which means it can be used for all-day surveying.
Key Features:
- 160×120 IR Detector
- Easy to use
- Long Battery Life
- Straight forward operation from the box
Entry Level Thermal Camera | D160 Pro
The D160 Pro is SATIR Newest Entry level thermal camera. This model is based on the D160-F that was a camera that became popular during the beginning of the Covid-19 Pandemic. End-Users liked the easy to use interface and lightweight, one-handed operation. Following on from this feedback we developed an industrial model to meet growing demands for a user friendly entry level thermal camera that can be used in surveys for facilities management companies, used by maintenance engineers and tradespeople such as plumbers and electricians.
The D160-Pro has a 160×120 IR detector with a temperature measurement range of -20°C ~ + 550°C. It has a long battery life of up to 8 hours which means it can be used for all-day surveying.
Key Features:
- 160×120 IR Detector
- Easy to use
- Long Battery Life
- Straight forward operation from the box

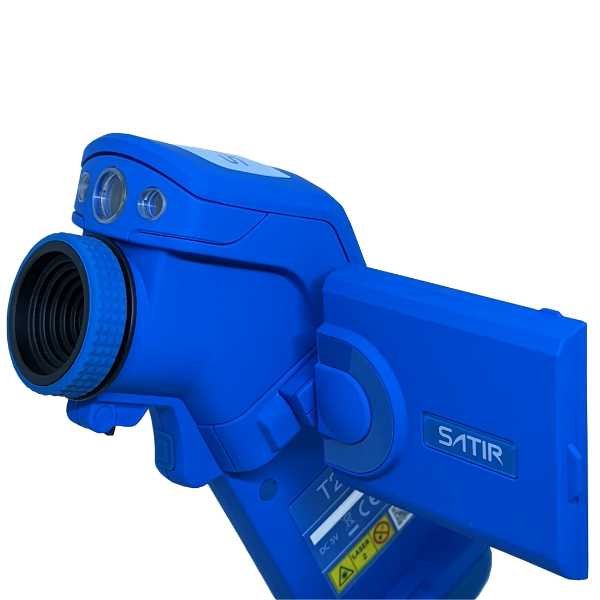

Affordable Thermal Imager | T-256
The T-256 is the first new product of SATIR’s thermal imagers & cameras of 2022. It has been developed in a response to end-users wanting a better image of the Entry Level cameras such as the D160 Pro but don’t have the budget for mid-level thermal imager such as the Hotfind-S or D300. The T-256 is the perfect model in between entry and mid-level thermal imagers and a very affordable camera model. The T-256 has a 256×192 IR Detector which delivers 49,152 pixels to the end-user’s screen this is 29,952 pixels more than the D160 Pro. The T-256 has an Android Platform which makes it compatible with a range of Play Store Apps such as Gmail for emailing images. It has Wifi and bluetooth compatibility which allows easy transferring of images and video to other devices such as an tablet or phone. It has a good battery life of up to 5 hours which would be ideal for carrying out 2-3 building survey’s a day. It can be charged quickly and easily with a USB-C charging cable. It is suitable for Industrial applications such as mechanical, plumbing and electrical.
Key Features:
- 256×192 IR Detector
- 30Hz Frame
- HDMI output for Images and Video
- Temperature Range –20°C ~ + 550°C
- Suitable for Industrial applications such as mechanical, plumbing and electrical
- Touch screen, easy to use new interface
Affordable Thermal Imager | T-256
The T-256 is the first new product of SATIR’s thermal imagers & cameras of 2022. It has been developed in a response to end-users wanting a better image of the Entry Level cameras such as the D160 Pro but don’t have the budget for mid-level thermal imager such as the Hotfind-S or D300. The T-256 is the perfect model in between entry and mid-level thermal imagers and a very affordable camera model. The T-256 has a 256×192 IR Detector which delivers 49,152 pixels to the end-user’s screen this is 29,952 pixels more than the D160 Pro. The T-256 has an Android Platform which makes it compatible with a range of Play Store Apps such as Gmail for emailing images. It has Wifi and bluetooth compatibility which allows easy transferring of images and video to other devices such as an tablet or phone. It has a good battery life of up to 5 hours which would be ideal for carrying out 2-3 building survey’s a day. It can be charged quickly and easily with a USB-C charging cable. It is suitable for Industrial applications such as mechanical, plumbing and electrical.
Key Features:
- 256×192 IR Detector
- 30Hz Frame
- HDMI output for Images and Video
- Temperature Range –20°C ~ + 550°C
- Suitable for Industrial applications such as mechanical, plumbing and electrical
- Touch screen, easy to use new interface

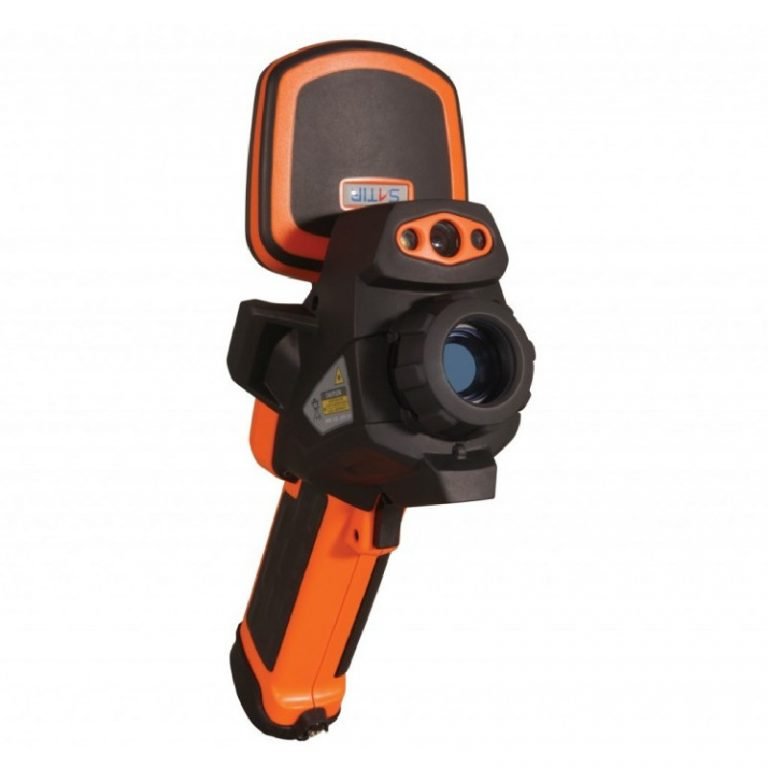

Industrial Advance Level Thermal Imaging
The SATIR Hotfind-S is one of our most popular Mid-Level thermography cameras for a variety of reasons such as it’s high performance imaging software can deliver excellent quality images for a wide range of industrial applications.
The Hofind-S has a 384×288 IR detector which generates 110592 pixels which delivers a clear, crisp detailed image to the user. There are three imaging modes which are IR, Digital (CCD) and Duo Vision which overlays the thermal image with the digital image.
The SATIR Hotfind-S comes with two methods of control, keypad and touch screen. The user can control the camera depending on their preference and application.
The Hotfind-S has extendable temperature range which means upon request it can be extended from the standard -20 to 650℃, up to +1500℃, which means the HotFind series can also be widely used in high temperature applications.
Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.
The analysis functions that come with the Hotfind-S include 8 movable spots, auto hot/cold spot, profile, 2 lines, 5 area boxes, isotherm.
HotFind series adopts NTSC (60Hz) or PAL (50Hz) composite video output. The thermal images are displayed in real time which guarantees complete and vivid thermal imaging with no ghosting.
Full radiometric thermal data can be transferred via the USB connection to a PC in real-time for analysis and reporting in the ReportIR USB software.
The Hotfind-S can be mounted on a tripod with the standard 1/4”_20 mounting socket. Add the optional AC adapter and the user can use the HotFind-S for continuous monitoring.
The SATIR Hotfind-S has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 7°, 12°, 48°
When buying the SATIR Hotfind-S you will receive a battery charger, batteries, sunshield, TF card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
Features:
- 384×288 IR Detector
- IR/CCD/Duo-vision/Duo-vision Plus/PiP
- Dual Control via Touch Screen or Keypad
- 3.5” LCD Tilting Screen
- Bluetooth
- Extendable temperature range
- Measurement Tools
- Available Optional Lenses/Min. Focus Distance: 7×5.25°/5m/0.32mrad，12×9°/0.5m/0.55mrad，24×18°/0.15m/1.1mrad, 48×36°/0.1m/2.2mrad
Industrial Advance Level Thermal Imaging
The SATIR Hotfind-S is one of our most popular Mid-Level thermography cameras for a variety of reasons such as it’s high performance imaging software can deliver excellent quality images for a wide range of industrial applications.
The Hofind-S has a 384×288 IR detector which generates 110592 pixels which delivers a clear, crisp detailed image to the user. There are three imaging modes which are IR, Digital (CCD) and Duo Vision which overlays the thermal image with the digital image.
The SATIR Hotfind-S comes with two methods of control, keypad and touch screen. The user can control the camera depending on their preference and application.
The Hotfind-S has extendable temperature range which means upon request it can be extended from the standard -20 to 650℃, up to +1500℃, which means the HotFind series can also be widely used in high temperature applications.
Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.
The analysis functions that come with the Hotfind-S include 8 movable spots, auto hot/cold spot, profile, 2 lines, 5 area boxes, isotherm.
HotFind series adopts NTSC (60Hz) or PAL (50Hz) composite video output. The thermal images are displayed in real time which guarantees complete and vivid thermal imaging with no ghosting.
Full radiometric thermal data can be transferred via the USB connection to a PC in real-time for analysis and reporting in the ReportIR USB software.
The Hotfind-S can be mounted on a tripod with the standard 1/4”_20 mounting socket. Add the optional AC adapter and the user can use the HotFind-S for continuous monitoring.
The SATIR Hotfind-S has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 7°, 12°, 48°
When buying the SATIR Hotfind-S you will receive a battery charger, batteries, sunshield, TF card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
Features:
- 384×288 IR Detector
- IR/CCD/Duo-vision/Duo-vision Plus/PiP
- Dual Control via Touch Screen or Keypad
- 3.5” LCD Tilting Screen
- Bluetooth
- Extendable temperature range
- Measurement Tools
- Available Optional Lenses/Min. Focus Distance: 7×5.25°/5m/0.32mrad，12×9°/0.5m/0.55mrad，24×18°/0.15m/1.1mrad, 48×36°/0.1m/2.2mrad
Industrial Advance Level Thermal Imaging
The SATIR Hotfind-S is one of our most popular Mid-Level thermography cameras for a variety of reasons such as it’s high performance imaging software can deliver excellent quality images for a wide range of industrial applications.
The Hofind-S has a 384×288 IR detector which generates 110592 pixels which delivers a clear, crisp detailed image to the user. There are three imaging modes which are IR, Digital (CCD) and Duo Vision which overlays the thermal image with the digital image.
The SATIR Hotfind-S comes with two methods of control, keypad and touch screen. The user can control the camera depending on their preference and application.
The Hotfind-S has extendable temperature range which means upon request it can be extended from the standard -20 to 650℃, up to +1500℃, which means the HotFind series can also be widely used in high temperature applications.
Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.
The analysis functions that come with the Hotfind-S include 8 movable spots, auto hot/cold spot, profile, 2 lines, 5 area boxes, isotherm.
HotFind series adopts NTSC (60Hz) or PAL (50Hz) composite video output. The thermal images are displayed in real time which guarantees complete and vivid thermal imaging with no ghosting.
Full radiometric thermal data can be transferred via the USB connection to a PC in real-time for analysis and reporting in the ReportIR USB software.
The Hotfind-S can be mounted on a tripod with the standard 1/4”_20 mounting socket. Add the optional AC adapter and the user can use the HotFind-S for continuous monitoring.
The SATIR Hotfind-S has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 7°, 12°, 48°
When buying the SATIR Hotfind-S you will receive a battery charger, batteries, sunshield, TF card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
Features:
- 384×288 IR Detector
- IR/CCD/Duo-vision/Duo-vision Plus/PiP
- Dual Control via Touch Screen or Keypad
- 3.5” LCD Tilting Screen
- Bluetooth
- Extendable temperature range
- Measurement Tools
- Available Optional Lenses/Min. Focus Distance: 7×5.25°/5m/0.32mrad，12×9°/0.5m/0.55mrad，24×18°/0.15m/1.1mrad, 48×36°/0.1m/2.2mrad

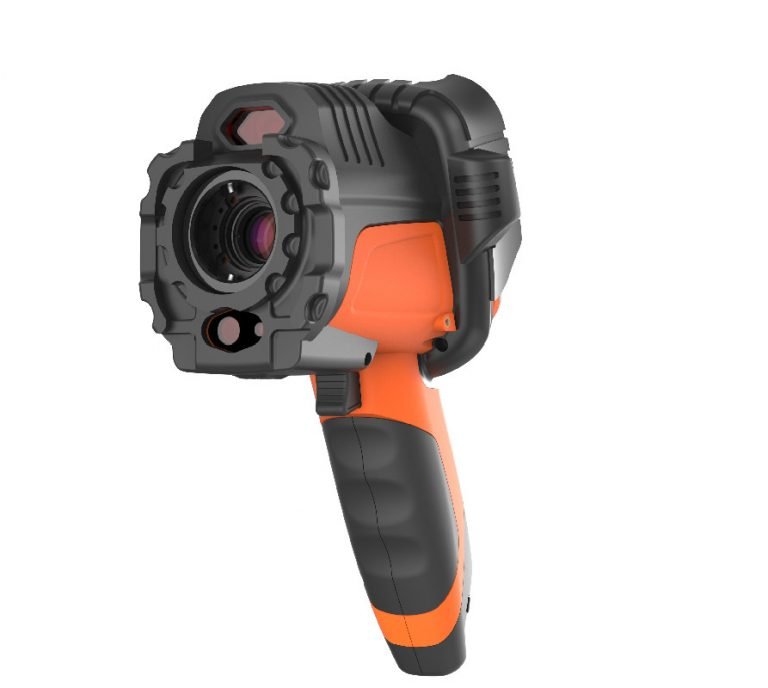

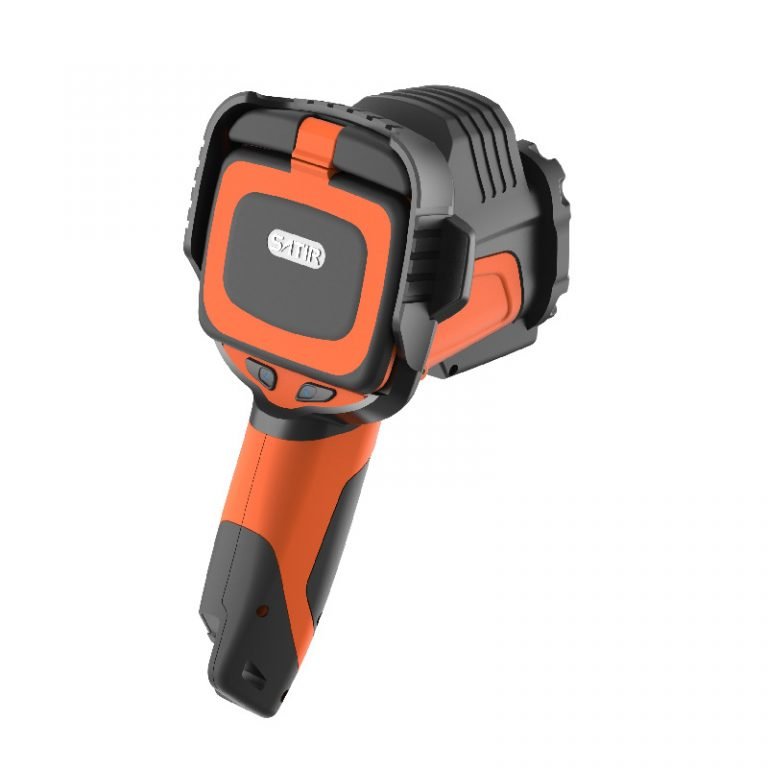

D300 (-20℃ to 650℃) with 24° lens
The SATIR D300 is the result of a large investment in our Research & Development Departments and therefore it is known as SATIR most innovative Thermal Imaging Camera yet for Mid-Level Thermography.
The SATIR D300 has some interesting design features such as fully reversible 3.5-inch display. It is suitable for users who are right or left handed, making the design ergonomic and accessible to all.
The SATIR D300 has a 384×288 IR detector which generates 110592 pixels, this gives the user a clear, crisp image and with high speed processing slows a quick image out without compromising quality. The SATIR D300 Mid-Level Thermography camera has four imaging modes which are Infrared (IR), Digital (CCD) and Duo Vision Plus which is a new technology developed by SATIR. The Duo Vision Plus allows users to overlay CCD and IR images giving the user a detailed and clear image.
The SATIR D300 has a touch screen that will auto focus to ensure the user has a clearly focused thermal image. This means when generating a report the image is already focused which enables accurate evaluation.
The SATIR D300 mid-level thermal camera comes with a laser range finder which allows the user to point the laser at the target to learn the distance between the camera and the target.
The SATIR D300 has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 24° Standard lens, 7° 4x, 12°2x.
When buying the SATIR D300 you will receive a battery charger, batteries, SD card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
Features:
- Newly Designed Platform
- 384×288 IR Detector
- IR/ CCD /Duo-Vision/ Duo-Vision Plus/ PIP
- Laser Range Finder
- Motorised/Manual/Auto Lens
- 5 MP High Definition Camera
- Long Battery Life
D300 (-20℃ to 1000℃) with 24° lens
The SATIR D300 is the result of a large investment in our Research & Development Departments and therefore it is known as SATIR most innovative Thermal Imaging Camera yet for Mid-Level Thermography.
The SATIR D300 has some interesting design features such as fully reversible 3.5-inch display. It is suitable for users who are right or left handed, making the design ergonomic and accessible to all.
The SATIR D300 has a 384×288 IR detector which generates 110592 pixels, this gives the user a clear, crisp image and with high speed processing slows a quick image out without compromising quality. The SATIR D300 Mid-Level Thermography camera has four imaging modes which are Infrared (IR), Digital (CCD) and Duo Vision Plus which is a new technology developed by SATIR. The Duo Vision Plus allows users to overlay CCD and IR images giving the user a detailed and clear image.
The SATIR D300 has a touch screen that will auto focus to ensure the user has a clearly focused thermal image. This means when generating a report the image is already focused which enables accurate evaluation.
The SATIR D300 mid-level thermal camera comes with a laser range finder which allows the user to point the laser at the target to learn the distance between the camera and the target.
The SATIR D300 has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 24° Standard lens, 7° 4x, 12°2x.
When buying the SATIR D300 you will receive a battery charger, batteries, SD card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
Features:
- Newly Designed Platform
- 384×288 IR Detector
- IR/ CCD /Duo-Vision/ Duo-Vision Plus/ PIP
- Laser Range Finder
- Motorised/Manual/Auto Lens
- 5 MP High Definition Camera
- Long Battery Life
D300 (-20℃ to 1500℃) with 24° lens
The SATIR D300 is the result of a large investment in our Research & Development Departments and therefore it is known as SATIR most innovative Thermal Imaging Camera yet for Mid-Level Thermography.
The SATIR D300 has some interesting design features such as fully reversible 3.5-inch display. It is suitable for users who are right or left handed, making the design ergonomic and accessible to all.
The SATIR D300 has a 384×288 IR detector which generates 110592 pixels, this gives the user a clear, crisp image and with high speed processing slows a quick image out without compromising quality. The SATIR D300 Mid-Level Thermography camera has four imaging modes which are Infrared (IR), Digital (CCD) and Duo Vision Plus which is a new technology developed by SATIR. The Duo Vision Plus allows users to overlay CCD and IR images giving the user a detailed and clear image.
The SATIR D300 has a touch screen that will auto focus to ensure the user has a clearly focused thermal image. This means when generating a report the image is already focused which enables accurate evaluation.
The SATIR D300 mid-level thermal camera comes with a laser range finder which allows the user to point the laser at the target to learn the distance between the camera and the target.
The SATIR D300 has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 24° Standard lens, 7° 4x, 12°2x.
When buying the SATIR D300 you will receive a battery charger, batteries, SD card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.
Features:
- Newly Designed Platform
- 384×288 IR Detector
- IR/ CCD /Duo-Vision/ Duo-Vision Plus/ PIP
- Laser Range Finder
- Motorised/Manual/Auto Lens
- 5 MP High Definition Camera
- Long Battery Life
i-384 New Handheld Thermal Camera
SATIR are pleased to announce the release of the i-384 New, an industrial handheld thermal camera series. the i-384 New which is a mid-level thermal camera as it has 384×288 IR resolution. The temperature range for the model is -20°C~+650°C, with an optional range of up to +2000°C available upon request. This has 10 colour palettes and a range of analysis tools such as, 10 movable spots, 10 boxes and 5 lines, Average temp, Max temp, Min temp. To capture all the video and images the model has a 32GB removable SD Card.
Key Features
- 3.5″TFT touch screen
- 5MP visual camera
- Better performance with ±2°C accuracy
- IR image/Visual image/PIP/Fusion/IMIF
- Professional analysis software
- WIFI
- Android App

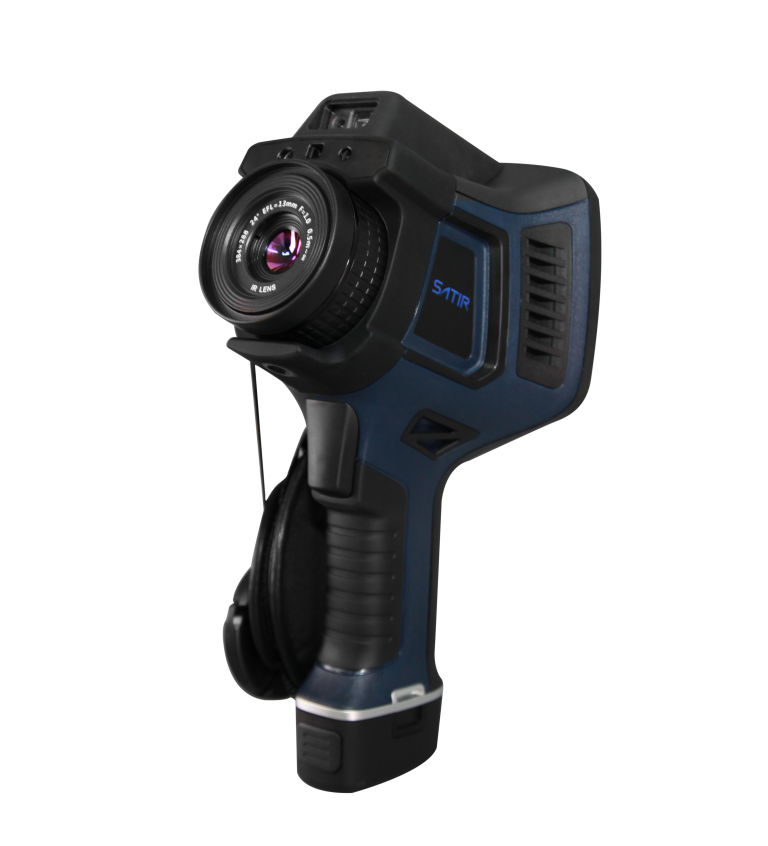

DX-300| Industrial Thermal Camera
SATIR are pleased to announce the release of the DX-300, an industrial handheld thermal camera. The DX-300 which is a mid level thermal camera as it has 384×288 IR resolution. The temperature range for the model is -20°C~+650°C, with an optional range of up to +2000°C available upon request. This has 10 colour palettes and a range of analysis tools such as 10 movable spots, 10 boxes and 5 lines, Average temp, Max temp , Min temp. To capture all the video and images the model has a 32GB removable SD Card.
Key features:
- 5″TFT touch screen
- 5MP visual camera
- Better performance with ±2°C accuracy
- IR image/Visual image/PIP/Fusion/IMIX
- Professional analysis software
- Optional lens: 48°/12°/6°
- Android App
