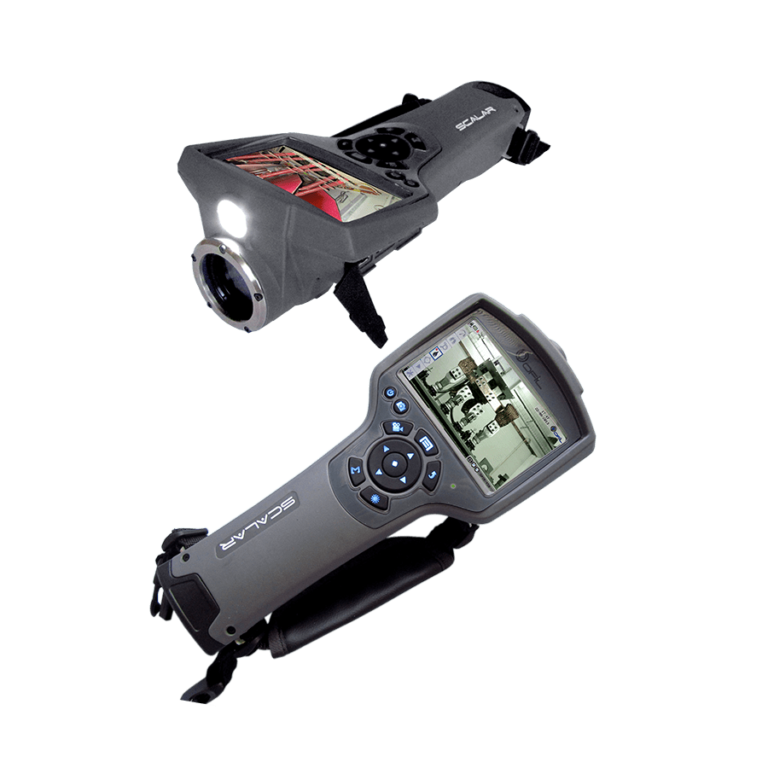

DayCor® Scalar

scalar-double

Practical, Powerful, Precise, Affordable

The Ofil Daycor® Scalar Indoor Corona Detection Camera can be used to detect faults associated with partial discharge in high voltage and medium voltage electrical systems. It is a portable, handheld, non-destructive UV corona camera featuring patented DayCor® technology.  It can be used for the following applications:

  • Factory acceptance tests
  • Quality analysis of motors and generators
  • Testing manufactured components which are believed to be corona free
  • Routine maintenance
LES-ofil-DayCor®-Scalar-Corona-Camera

A compact handheld corona detecting camera for indoor use. Scalar is a visible-blind camera that fits artificially lit workspaces such as high voltage laboratories and workshops. Scalar is used for non-destructive PD detection tests performed on hi/med voltage installations such as switchgear, motors, generators etc. Scalar provides clear visual information about discharges that are invisible otherwise to the human eyes.

Scalar detects invisible ultraviolet photons that result from partial discharge processes and translates them into visible blobs. Scalar uses 2 optical channels that complement each other namely, UVb in the range of 310-320 nm and visible range. The camera is equipped with an optical filter, attuned to corona peak, that filters out non corona PD light. The transmitted corona PD light is then superimposed on the discharging object, displaying a true portray of the faulty specimens. DayCor® Scalar is a compact handheld camera with a wide field of view for testing nearby objects. The camera records video clips and snapshots of the specimens storing them onto an onboard SD card. Testing results are instantaneous and pinpointed DayCor® Scalar is an excellent cost effective inspection solution.

Features that deliver results

Discover hidden faults and see them on a wide deluxe transmissive LCD, with backlight of 600 nits, and resolution of 800X480 px sharp and clear. Record findings and use them as evidence.  Store video clips and still pictures onto a removable flash card and review them again to compare and trend. In darker compartments Scalar has it own built-in LED flashlight, while the command buttons are shining to ease their selection.

Small dimension big value

Get significant information, fast, simply and clearly. Wide field of view enables testing in narrow spaces. Operation is intuitive operation, without efforts, very user-friendly interface, fast response, and clear corona events manifestation. Turn on, aim, shoot and store. Neither calibrations nor any further adjustments are needed throughout its life.

SMART AND COST EFFECTIVE

DayCor® Scalar allows configuring multiple operation profiles to accommodate for different conditions. During inspection it is readily possible to switch between profiles and select the most appropriate one.  Scalar is designed to maximize ease of operation. It is operated using a featured menu and a set of command buttons.

DayCor® UVollé

Models: SX | VX | SC | VC

Practical, Powerful, Precise, Affordable

UVollé is a mid-range family of Solar Blind imaging systems for professional daytime corona and arcing detection. UVollé cameras detect invisible UV radiation of corona in daylight and present a visible pinpointed representation of corona it its actual location revealing both the phenomenon and the faults. UVollé implements the proven capabilities of DayCor® technology and add valuable information about the condition of electrical installations. Along with its ergonomic design and compact size UVollé cameras have an outstanding LCD and a powerful LED flashlight to support intensive routine in/outdoors operations. UVollé is ideally suited for electrical utilities, contractors, HV laboratories, industry owners of substations

UVolle-C-and-UVolle-X

Compact handheld corona cameras for daytime inspection of electrical apparatuses in/outdoors, with special emphasis on ergonomic design and ease of operation. UVollé cameras are manufactured under adherence to rigorous quality control standards.

UVollé family incorporates the DayCor® technology, and features thereby very high sensitivity to corona signals and perfect signal positioning. UVollé has a large Sun Readable WVGA LCD, perfect for inspection in sunny conditions, and a powerful LED flashlight, to support poor lit inspected objects. UVollé is fit for remote testing of high & medium voltage apparatuses. UVollé enables seeing pinpointed image of corona partial discharge and the emitting source. The visual information can be augmented with further data about the ambient conditions and GPS, recorded and stored for analysis and documentation. UVollé reveals and displays, in real time on-the fly, existing voltage related faults.

UVollé SC

UVollé-SC compact bi-spectral UV-Visible still pictures camera pinpoints, displays and shoots corona and arcing during daytime. Features a 4.3” transflective sun proof LCD

UVollé VC

UVollé-VC compact bi-spectral UV-Visible video camera pinpoints, displays and records corona and arcing during daytime.. Features a 4.3” transflective sun proof LCD

UVollé SX​

UVollé-SX compact bi-spectral UV-Visible still pictures camera pinpoints, displays and shoots corona and arcing during daytime. Features a 5”  wide WVGA sun readable LCD

UVollé VX

UVollé-VX compact bi-spectral UV-Visible video camera pinpoints, displays and records corona and arcing during daytime. Features a 5”  wide WVGA sun readable LCD

Find Faults Fast and Precise

Discover unexpected faults and pinpoint their location. Find out in real time existing corona, known as the source for corrosive processes in insulation, metal fittings, concrete etc., radio interreferences, audio noise and ultraviolet radiation

Practical and Technical

Inspectors expect to get relevant information, fast, simple and clear. UVollé is built for inspectors, offering simple intuitive operation, user friendly interface, fast response, clear results of corona events. Turn on, aim, shoot and store. Neither calibrations nor any further adjustments are needed throughout its life.

Indoor and Outdoor

A sun readable spacious LCD with brightness control supports outdoor operation, while backlit keyboard and a powerful LED flashlight fit indoors shady conditions. Dynamic FOV with manual and auto focus match indoors inspections of nearby objects as well as outdoor inspection of remote objects. Long battery runtime support outdoor activity and AC/DC inlet is handy for indoors. Ongoing operation without overheating supports both indoors and outdoors, ensuring stable availability.

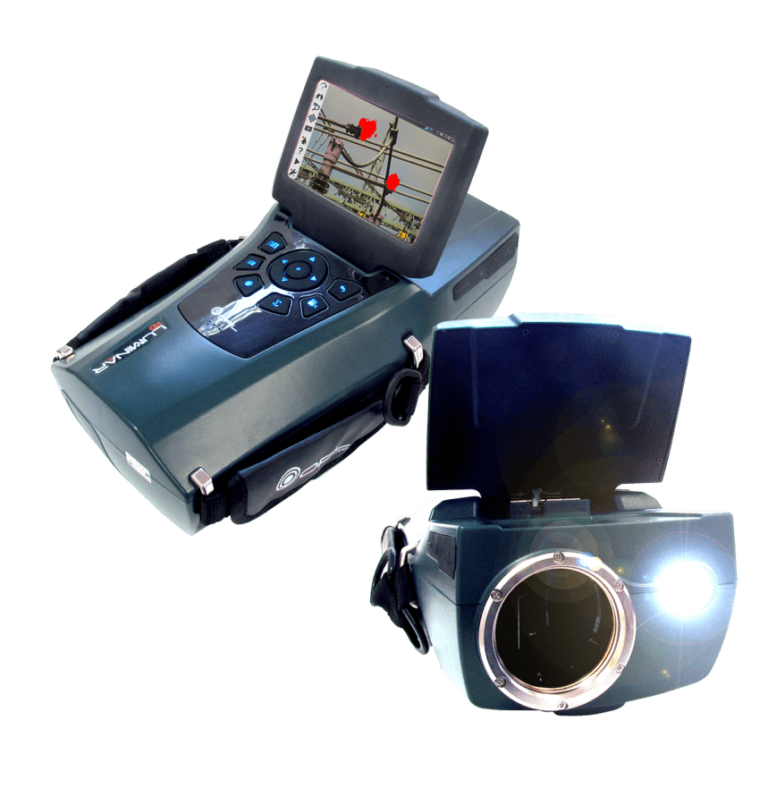

DayCor® Luminar HD

Practical, Powerful, Precise, Affordable

Luminar HD is a high end Solar Blind imaging system for professional daytime corona and arcing detection.

Luminar HD features impressive sensitivity to UV radiation and can detect remote invisible UV radiation of corona in daylight and present a visible pinpointed representation of corona it its actual location revealing clearly both the phenomenon and the faults.

Along with the implemented DayCor® Technology, Luminar HD is boosted with features that enhance detection and ensure accurate, reliable and valuable inspection results.

High-end handheld corona camera for daytime inspection of electrical apparatuses in/outdoors, with special emphasis on imaging definition, sensitivity and functionality. Luminar HD camera is manufactured under adherence to rigorous quality control standards.

LuminarHD incorporates Ofil’s benchmarked DayCor® proprietary technology ensuring daytime operation with the highest sensitivity to UV radiation of corona. LuminarHD is ergonomically designed and built for extended uninterrupted operation. Luminar HD has a large Sun Readable WVGA LCD, perfect for inspection in sunny conditions, and a powerful LED flashlight, to support poor lit inspected objects. Luminar HD is fit for remote testing of high & medium voltage apparatuses. It enables seeing pinpointed image of corona partial discharge and the emitting source. With the built-in GPS, temperature & humidity sensor plug and HD imaging, LuminarHD provides pinpointed and specific data that concerns the detected corona under specific ambient conditions in specific locations. Findings are available in real time, displayed on a high definition LCD and ready to be stored on board. LuminarHD assists inspectors investigate electrical faults and get a wider understanding of assets’ condition.

FIND FAULTS FAST AND PRECISE

Discover unexpected faults and pinpoint their location. Find out in real time existing corona, known as the source for corrosive processes in insulation, metal fittings, concrete etc., radio interreferences, audio noise and ultraviolet radiation

SENSITIVITY IS THE KEY FACTOR

Seeing corona at daytime is challenging hence UV wavelengths are beyond our perception scope. Seeing corona on remote installations at daytime is even a greater challenge hence light attenuates exponentially over distances. DayCor® is designed meticulously to enable seeing afar faint UV signals. Luminar undergoes sensitivity tests by an external unbiased European HV laboratory and is certified for having a sensitivity of detecting as low as 1pC @ 15 meters

SEE TO FORESEE – PREDICTIVE MAINTENANCE

Inspection is aimed at getting as much information as possible in a short time and as accurate as can be to portray the real condition of assets. Accumulated data is analyzed and used to manage predictive maintenance. Luminar HD responds to that need providing the corona side of the equation, fully, accurately, fast and reliably.

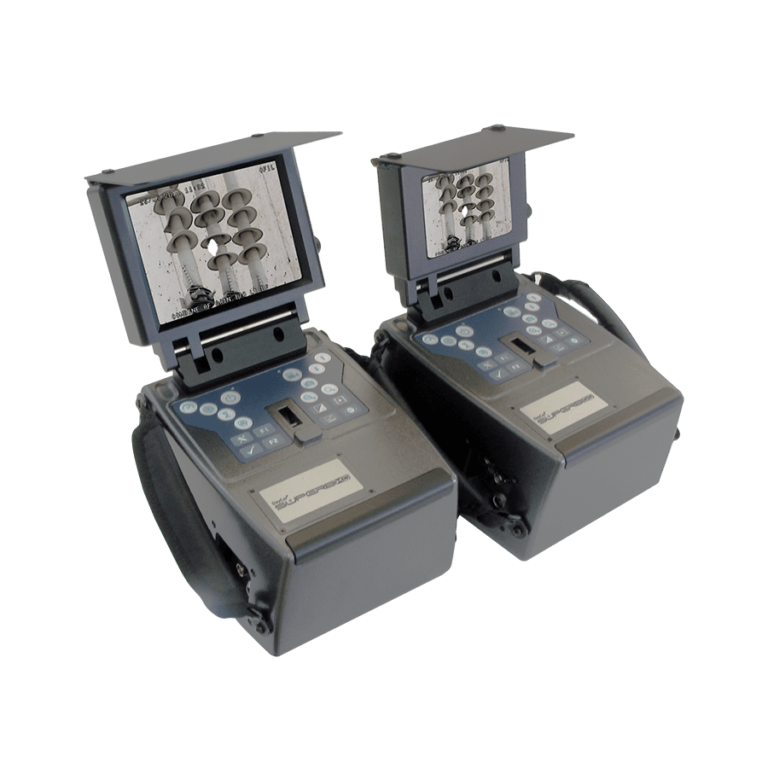

DayCor® Superb

Superb Models OD | XD

Practical, Powerful, Precise, Affordable

Superb is a solar blind UV imager with excellent detecting capabilities fit for any light and weather conditions.

Superb is Ofil’s trouper model that is being used by worldwide companies for over a decade and is still in high demand. Due to its outstanding performance it is desirable by researchers and HV laboratories.

The camera is very easy to operate using a simplified keyboard. It fits for indoors and outdoors inspection. With its robust chassis and electromagnetic shielding, it can be mounted on vehicles, carried in helicopters or hand held with a supportive vest.

Handheld corona cameras for professional indoors and outdoors inspection practices under full daylight conditions.  Superb, as the name implies, has enhanced sensitivity to UV and outstanding detection capabilities. The cameras are built as robust cameras to withstand high magnetic & electrical fields.  Ofil offers two models of DayCor® Superb that differ in the dimension of their LED display (see specifications). Superb cameras are manufactured under adherence to rigorous quality control standards.

Superb family incorporates the DayCor® technology and fulfills the expected sensitivity to corona by high voltage laboratories, researchers, rotating machine repair workshops and professional grid examiners.  Superb has a large adjustable spacious transflective LCD with brightness control for working in sunny conditions. Superb records video & stills of findings and offers to stream them out to a remote monitor. To allow detecting corona PD in hazardous compartments Superb can be operated remotely via a remote control. Superb enables seeing pinpointed image of corona partial discharge and the emitting source. The visual information can be augmented with further data about the ambient conditions and GPS, recorded and stored for analysis and documentation. DayCor® Superb reveals and displays, in real time on-the fly, existing voltage related faults.

Superb OD

DayCor® Superb OD, handheld bi-spectral UV-Visible daytime corona camera, features an adjustable 5” LCD with brightness of 450 lumen. The high resolution transflective LCD performs excellent under bright and sunny conditions.

Superb XD

DayCor® Superb XD, handheld bi-spectral UV-Visible daytime corona camera, features an adjustable 6.5” LCD with brightness of 800 lumen. The high resolution transflective LCD performs excellent under bright and sunny conditions.

The Grand Simplicity

Simple yet geared to high performance, DayCor® Superb is designed to achieve high quality data in an automatic mode. Turn on and see what your bare eyes cannot see. Onboard spacious keyboard allows switching between spectral modes, zoom in and out or capture videos.

Professional Performance

Getting results on time in real time while knowing that the camera extends your visual capacities and provides true data, is what you strive to. And, that is what DayCor® Superb guarantees to provide. Mount the camera on a tripod or hold it to start seeing corona.

Endorsed by Experts

In use for many years and still attractive despite its old-fashioned look, or maybe because of it, DayCor® Superb maintains is popularity. Experts keep demanding the camera whose performance has been proven. Whether inside a lab or out in the field, whether on land or in the air, in every corner of the globe, Superb keeps on running and is here to stay.
