DayCor® micROM HD

UAS – UNMANNED AIRCRAFT SYSTEM

micROM HD is a bi-spectral UV-Visible imaging block corona Plug-N-Play for drones.

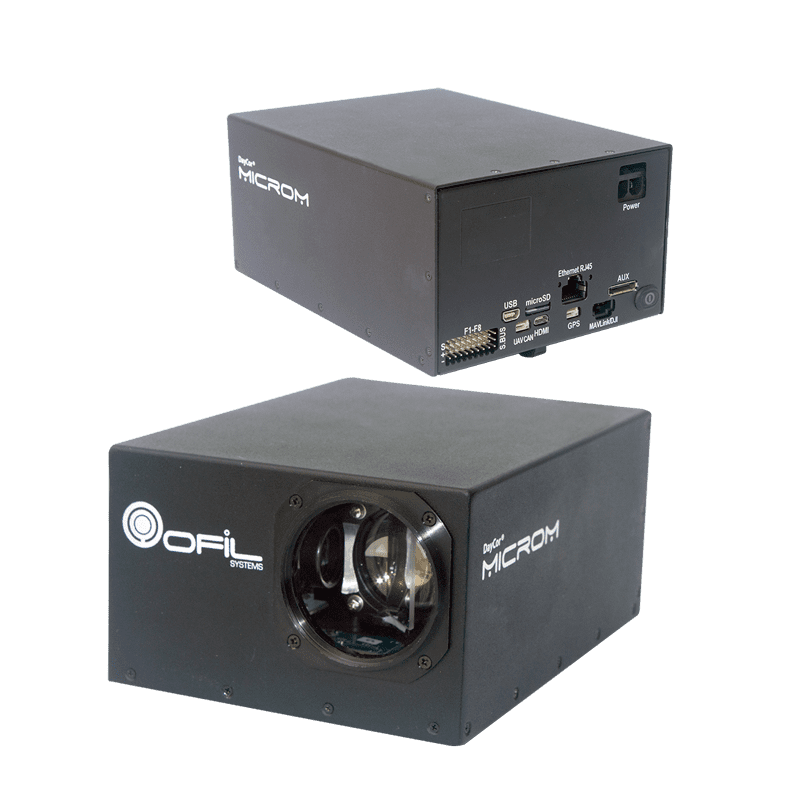

DayCor® micROM HD is an innovative corona camera designed for use on UAV. It is electromagnetically shielded, small and light with ready interfaces to communication protocols. micROM HD is the first micro HD camera with dual sensors UV & Visible, capable of detecting and imaging corona in daylight.

Unmanned Aircraft Corona & Arcing Detection System

Unmanned Aircraft Corona & Arcing Detection System

DayCor® micROM HD is an innovative corona camera designed for use on UAV. It is electromagnetically shielded, small and light with ready interfaces to communication protocols. micROM HD is the first micro HD camera with dual sensors UV & Visible, capable of detecting and imaging corona in daylight.

micROM HD streams out videos of the inspected electrical elements revealing sources of corona and records them internally. With the embedded DayCor® technology micROM HD acts as a high sensitivity testing equipment providing reliable precise information about electrical and mechanical faults. micROM accepts external GPS and ambient condition data and integrates them with the recorded footage.

micROM HD comes with ready to use ports for communicating with drones. Integration is easy and straight forwards. micROM is remotely controlled by a set commands that are supplied to drone operators to be configured on their remote control.  The HD imaging serves well the need for detailed clear views of remote specific grid elements.

micROM HD is offered both as a block camera that fits well into a wide range of gimbals and as OEM camera core per individual preferences and optional customization.

MAXIMISE FLIGHT DURATION, SPEED & FLEXIBILITY

In order to maximize flexibility, duration and velocity weight must be kept at minimum. micROM HD is a lightweight camera with energy-efficient management allowing longer, higher and faster flights while scanning power lines. micROM HD silhouette simplifies the outline of gimbal design requirements.

SEE MORE GET MORE

micROM HD streams & records HD videos providing clear views of the inspected scenes, allowing reading plate names & catalogue numbers of equipment for maintenance referencing. Videos can include corona events count, date & time, GPS, temperature and humidity (optional). High resolution guarantees more observed detailed data.

MANAGE TIME EFFICIENTLY

micROM HD provides in real time the representation of corona as it is emitted, displaying both the discharges and the faults. Imagery is clear and sharp even while on the move. Output is used to determine faults’ location and level of severity.

DayCor® ROMpact

Models: ROMpact | ROMpact-EYE

Compact Block Corona Camera for UAV

ROMpact is a bi-spectral UV-Visible imaging block corona for drones

Unmanned Aircraft Corona & Arcing Detection System

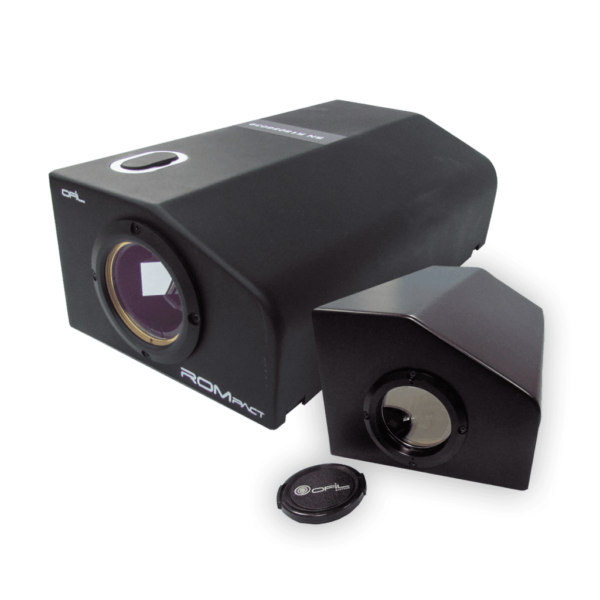

DayCor® ROMpact is a compact robust block camera fit for corona inspection by unmanned aerial vehicles (UAV), or by helicopters with small gimbal payloads. ROMpact is also offered for 24/7 monitoring of electrical installations on fixed mounts. DayCor® ROMpact is a dual sensors of UVc and Visible has excellent scanning & corona detection capabilities of remote corona sources.

With its compact dimensions and low weight ROMpact can be fit into payloads of various sizes. The camera features high sensitivity to ultraviolet signals in daytime and flueless registration of corona sources. The detected UV radiation is presented exactly at its physical location, leading thereby maintenance teams to the faulty locations.  ROMpact records, saves and transfers on-the-fly, in real time, pinpointed information about occurrences of corona partial discharge (PD) and of electrical faults. ROMpact is attractive to systems with size and weight limitation and to systems that wish to incorporate multi spectral sensors. inspection of high and medium voltage electrical installations while on the move.

ROMpact is offered both as a block camera on a stabilizing plate and as a core module, ROMpact EYE, providing for individual OEM preferences and optional customization

Unmanned Aircraft Corona & Arcing Detection System

ROMpact

ROMpact a bi-spectral block camera for UAV with a shielded housing and a stabilizing plate

ROMpact-EYE

ROMpact-EYE camera core module, for OEM integration. Shares similar characteristics as ROMpact but is free of branding and the casing has not stabilizing plate. Can be customized to customers’ preferences.

Compact with Significant Value

ROMpact is a multipurpose block corona camera that fits well small platforms such as UAVs, small gimballed payloads or standalone fixed mounts that seek inspection/monitoring solutions with high sensitivity to ultraviolet radiation. As a camera core, ROMpact outputs video streams wirelessly or wired to an external monitor. The high sensitivity to corona supports high detectivity of remote objects.

HIGH SPEED INSPECTION

ROMpact’s high sensitivity to UVc radiation enables detection and capture of distant corona discharge. Imaging is direct and does not involve processing nor frames integration. The resulted videos are sharp, showing pinpointed information without any smearing even during high speed motion.

VIDEO RECORDING & TRANSMISSION

Throughout inspections video is being transferred to a remote monitor. Selected findings can be recorded onto an onboard internal flashcard for further analysis and documentation. ROMpact can be used either as a stand-alone UV-Visible camera or in combination with other optical sensors such as IR.
