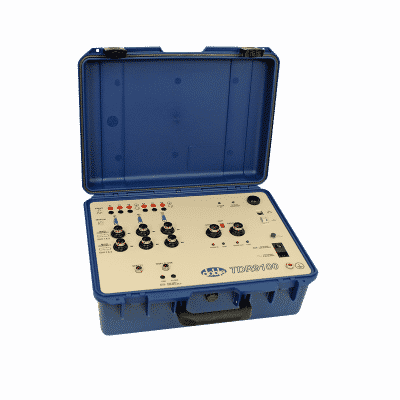

Comprehensive circuit breaker test system

MODEL: TDR9100

MAKE: Vanguard Instrument

The Doble TDR9100 Circuit Breaker Analyzer is a state-of-the-art circuit breaker test set for testing all types of circuit breakers with efficient and accurate performance measurements.

The TDR9100 provides measurements for main and auxiliary contact timing, mechanical motion analysis, analog values, resistance and capacitance.

Use this inclusive, rugged and field-portable instrument for simple and complex testing of circuit breakers.

The TDR9100 controls circuit breaker trip and close commands and supports the following operations: Trip (O), Close (C), Reclose (O-0.3s-C), Tripfree (CO), O-CO, O-0.3s-CO, First Trip (O), Slow Close (C).

Features

  • Features up to 4 breaks per phase, 3 motion channels and 6 event channels
  • Testing Flexibility – the TDR9100 can be ganged as a set of 2 or 3 units effectively doubling or tripling your usable channels and main contacts for up to 12 breaks per phase
  • User-friendly T-Doble Software features an intuitive control panel for quick, efficient and simple testing of circuit breakers
  • Measure additional parameters in the mechanism cabinet using Doble or 3rd party transducers

Benefits

  • Know that your breakers can and will perform when they are needed
  • Easily detect main contact and resistor contact timing errors
  • A patented digital rotary and linear transducer provide early diagnosis of mechanical problems
  • Immune to Interference – the accuracy of test results is unaffected by the severe conditions of electrostatic and electromagnetic interference that are normally present in harsh substation environments.
  • Control with a Doble Universal Controller (DUC), tablet or PC

T-Doble Software

  • Control and operate your TDR9100 to make and compare breaker timing measurements, validate time of operation, and verify manufacturer specifications
  • Operate, record and maintain specified tests and their respective files
  • Create and manage circuit breaker test plans
  • Plot, overlay, analyze and print data
  • Maintain test plan library for families of circuit breakers and associated mechanisms

Circuit breaker test system

MODEL: TDR900

MAKE: Vanguard Instrument

The Doble TDR900 is your entry-level, portable circuit breaker test set.

It operates and records a circuit breaker’s contact timing, motion, velocity, main contact engagement & synchronization, trip and close coil initiation and currents.

Use the TDR900 to verify control circuit, check motion of moving parts, validate time of operation and demonstrate results of circuit breaker maintenance.

Features

  • Monitor breakers with up to 4 breaks per phase with motion measurements
  • Detect main and pre-insertion resistor engagement and timing on all 12 channels
  • Record up to three analog and three digital customer definable parameters
  • Create and manage custom circuit breaker test plans with T-Doble software
  • Measure additional parameters in the mechanism cabinet using Doble or 3rd party transducers

Benefits

  • Know that your breakers can and will perform when they are needed
  • Easily detect main contact and resistor contact timing errors
  • Control with a Doble Universal Controller (DUC), tablet or PC

T-Doble Software

  • Control and operate your TDR900 to make and compare breaker timing measurements, validate time of operation, and verify manufacturer specifications
  • Operate, record and maintain specified tests and their respective files
  • Create and manage circuit breaker test plans
  • Plot, overlay, analyze and print data
  • Maintain test plan library for families of circuit breakers and associated mechanisms

Digital Circuit Breaker Analyzer

MODEL: CT-8000 S3

Request a quote

The CT-8000 S3 is Vanguard’s fourth generation EHV circuit breaker analyzer. The CT-8000 S3 is available with 3 (part number 9103-UC) or 6 contact timing channels (part number 9104-UC). The Vanguard CT-8000 S3 can fully analyze a circuit breaker’s performance by measuring the main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes. Also, an outstanding feature of the CT-8000 S3 is the ability to perform dynamic resistance tests on circuit breaker contacts.

FEATURES & BENEFITS

  • Fully analyze circuit breaker’s performance by measuring main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes
  • Perform dynamic contact resistance test
  • USB computer interface
  • USB Flash drive interface (Flash drive not included)
  • Store up to 200 test records and 100 test plans internally
  • Initiate Breaker Operation
  • Built-in 4.5″ wide Thermal Printer
  • Rugged “QWERTY” style membrane keypad
  • Optional “On-line” Timing Mode
  • Optional dual ground testing mode
  • Optional Bluetooth wireless computer interface

CABLES

[8000-0005] USB Cable [ 6′ (1.83m) ] 8000-0005
[8000-0016] Power + Ground Combination Cable 8000-0016
[8000-0097] Contact Extension Cable [ 30′ (9.14m) ] 8000-0097
[8000-0099] Initiate Cable [ 22′ (6.71m) ] 8000-0099
[8000-0101] Test Lead (Trigger, V1, V2) [ 2′ (0.61m) ] 8000-0101
[8000-0102] Analog Transducer Cable 8000-0102
[8000-0104] Transducer Cable [ 25′ (7.62m) ] 8000-0104
[8000-0174] CT-7000 S3/8000 S3 Contact Cable (4 pin, 20′) 8000-0174
[8000-0175] CT-7000 S3/8000 S3 Contact Extension Cable (4 pin, 30′) 8000-0175
[8000-0213] CT-8000 S3 Current/Sense Cable Set 8000-0213

TECHNICAL SPECIFICATION

TYPE Portable circuit-breaker analyzer
PHYSICAL SPECIFICATIONS 16”W x 11”H x 14”D (40.6 cm x 29.9 cm x 35.6 cm); Weight: 22 lbs (9.98 kg)
INPUT POWER 100-240Vac, 10A, 50/60Hz
DRY-CONTACT INPUTS 3 channels (9103-UC) or 6 channels (9104-UC). Channel can detect the main contact and resistor contact time.
TIMING WINDOWS 1 second, 10 seconds, or 20 seconds
TIMING RESOLUTIONS ±50 micro-seconds @ 1 sec. duration,
±500 micro-seconds @ 10 sec. duration,
±1.0 milli-seconds @ 20 sec. duration
TIMING ACCURACY 0.05% of reading ±0.05 ms @ 1 second duration
DRY-CONTACT CHANNEL PROTECTION All contact inputs are grounded until test. Input channels are also protected against static discharge.
DRY-CONTACT DETECTION RANGE Closed: Less than 20 Ohm. Opened: greater than 5000 ohm
INSERTION RESISTOR DETECTION RANGE 50 – 5,000 ohms
TRIGGER INPUT VOLTAGE Open/Close trigger voltage: 24 V – 300V DC or peak AC
VOLTAGE SENSING INPUT RANGE V1: analog input; 0 – 250 V DC or peak AC; sensitivity ±1 V; record and print voltage level
V2 and V3: voltage presence/absence detector input; 24 – 255 V DC or peak AC; record and print 3 timing events
BREAKER OPERATIONS Initiate Open, Close, Open-Close, Close-Open, Open-Close-Open
BREAKER INITIATE CAPACITY 30A, 250 Vac/dc max
INITIATE CURRENT READING RANGE one, non-contact, Hall-effect sensor, 0 – 20 amp range, dc to 5 Khz AC
DIGITAL TRAVEL TRANSDUCER INPUTS 3 digital travel transducer channels; linear range: 0.0 – 60.0 in (±0.01 in)
rotary range: 0 – 360 degrees (±0.36 degrees)
RESISTOR TYPE TRANSDUCER INPUTS 3 channels, 200 ohm – 10K ohms
CONTACT TRAVEL POINT DIFFERENCE measures “slow-close” contact-point distances; results can be printed
DYNAMIC/STATIC RESISTANCE RANGE 0.1 – 1,999 micro-ohms; accuracy: ±2% of reading, ±5 micro-ohms
RESISTANCE TEST CURRENT 200 amperes max
DISPLAY back-lit LCD screen (128 x 240 pixels); viewable in bright sunlight and low light
PRINTER built-in 4.5” wide thermal printer that can print both graphic contact travel waveforms and tabulated test results
INTERNAL TEST RECORD STORAGE Store upt to 200 test records and 100 test plans
EXTERNAL TEST RECORD STORAGE USB Flash drive interface for external storage of test records and test plans
COMPUTER INTERFACES One USB port, optional Bluetooth wireless interface
PC SOFTWARE Windows® based Breaker Analysis software included with purchase price
CABLES furnished with full set of test leads
OPTIONS transportation cases (available for the CT-8000 S3 and travel transducers), on-line timing mode, dual ground testing mode,
bluetooth interface
SAFETY designed to meet UL 6101A-1 and CAN/CSA C22.2 No 1010.1-92 standards
ENVIRONMENT Operating: -10°C to +50°C (+15°F to +122°F);
Storage: -30°C to +70°C (-22°F to +158°F)
HUMIDITY 90% RH @ 40°C (104°F) non-condensing
ALTITUDE 2,000 m (6,562 ft) to full safety specifi cations
WARRANTY one year on parts and labor
Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F).

Digital Circuit Breaker Analyzer

MODEL: CT-7000 S3

Request a quote

The CT-7000 S3 is Vanguard’s fourth generation EHV circuit breaker analyzer. The CT-7000 S3 is available with 3 (part number 9021-UC) or 6 contact timing channels (part number 9100-UC). The CT-7000 S3 can fully analyze a circuit breaker’s performance by measuring the main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes. Both contact and motion analysis can be performed on all circuit breaker operations (OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN, and OPEN CLOSE-OPEN). The CT-7000 S3’s timing window is selectable between 1 second, 10 seconds, and 20 seconds.

FEATURES & BENEFITS

  • Fully analyze circuit breaker’s performance by measuring main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes
  • USB computer interface
  • USB Flash drive interface (Flash drive not included)
  • Store up to 200 test records and 100 test plans internally
  • Initiate Breaker Operation
  • Built-in 4.5″ wide Thermal Printer
  • Rugged “QWERTY” style membrane keypad
  • Optional “On-line” Timing Mode
  • Optional dual ground testing mode
  • Optional Bluetooth wireless computer interface

TECHNICAL SPECIFICATION

TYPE Portable circuit-breaker analyzer
PHYSICAL SPECIFICATIONS Dimensions: 21.5”W x 8”H x 14” D (53 cm x 20 cm x 35 cm)
Weight: 15 lbs (6.8 Kg)
INPUT POWER 100-240Vac, 3A, 50/60Hz
DRY-CONTACT INPUTS 3 channels (9021-UC) or 6 channels (9100-UC). Channel can detect the main contact and resistor contact time.
TIMING WINDOWS 1 second, 10 seconds, or 20 seconds
TIMING RESOLUTIONS ±50 micro-seconds @ 1 sec. duration,
±500 micro-seconds @ 10 sec. duration,
±1.0 milli-seconds @ 20 sec. duration
TIMING ACCURACY 0.05% of reading ±0.05 ms @ 1 second duration
DRY-CONTACT CHANNEL PROTECTION All contact inputs are grounded until test. Input channels are also protected against static discharge.
DRY-CONTACT DETECTION RANGE Closed: Less than 20 Ohm. Opened: greater than 5000 ohm
INSERTION RESISTOR DETECTION RANGE 50 – 5,000 ohms
TRIGGER INPUT VOLTAGE Open/Close trigger voltage: 24 V – 300V DC or peak AC
VOLTAGE SENSING INPUT RANGE V1: analog input; 0 – 250 V DC or peak AC; sensitivity ±1 V; record and print voltage level
V2 and V3: voltage presence/absence detector input; 24 – 255 V DC or peak AC; record and print 3 timing events
BREAKER OPERATIONS Initiate Open, Close, Open-Close, Close-Open, Open-Close-Open
BREAKER INITIATE CAPACITY 30A, 250 Vac/dc max
INITIATE CURRENT READING RANGE one, non-contact, Hall-effect sensor, 0 – 20 amp range, dc to 5 Khz AC
DIGITAL TRAVEL TRANSDUCER INPUTS 3 channels, 200 ohm – 10K ohms
CONTACT TRAVEL POINT DIFFERENCE measures “slow-close” contact-point distances; results can be printed
DISPLAY back-lit LCD screen (128 x 240 pixels); viewable in bright sunlight and low light
PRINTER built-in 4.5” wide thermal printer that can print both graphic contact travel waveforms and tabulated test results
INTERNAL TEST RECORD STORAGE Store up to 200 test records and 100 test plans
EXTERNAL TEST RECORD STORAGE USB Flash drive interface for external storage of test records and test plans
COMPUTER INTERFACES One USB port, optional Bluetooth wireless interface
PC SOFTWARE Windows® based Breaker Analysis software included with purchase price
CABLES furnished with full set of test leads
OPTIONS transportation cases (available for the CT-7000 S3 and travel transducers), on-line timing mode, dual ground testing mode,
bluetooth interface
SAFETY designed to meet UL 6101A-1 and CAN/CSA C22.2 No 1010.1-92 standards
ENVIRONMENT Operating: -10°C to +50°C (+15°F to +122°F); Storage: -30°C to +70°C (-22°F to +158°F)
HUMIDITY 90% RH @ 40°C (104°F) non-condensing
ALTITUDE 2,000 m (6,562 ft) to full safety specifi cations
WARRANTY one year on parts and labor

EHV Circuit Breaker Analyzer

MODEL: DIGITMR S2

Request a quote

The Vanguard DIGITMR S2 is an inexpensive, easy to use digital circuit breaker analyzer. The DIGITMR S2 can be operated stand-alone or can be computer-controlled. It can fully analyze a circuit-breaker’s performance by testing the contact time, stroke, velocity, over-travel, and contact wipe. Contact and motion analysis can be performed for all breaker contact operations (Open, Close, Open – Close, Close – Open, and Open – Close – Open). Timing results are recorded and displayed on the 240 x 128 pixels back-lit LCD screen and can also be printed on the built-in 4.5″ wide thermal printer.

FEATURES & BENEFITS

  • Stand-alone, microcomputer-driven EHV Circuit Breaker Analyzer
  • Analyzes contact time, stroke, velocity, over-travel, and contact wipe
  • USB PC interface
  • USB Flash drive interface
  • Can store up to 200 test records and 100 test plans
  • Built-in thermal printer

TECHNICAL SPECIFICATION

TYPE portable digital circuit breaker analyzer
 PHYSICAL SPECIFICATIONS 18.5”W x 14”H x 7”D (47.0 cm x 35.7 cm x 17.6 cm);
Weight: 20 lbs (9.1 kg)
 INPUT POWER 3 Amps, 100 – 240 Vac, 50/60 Hz
 DRY-CONTACT INPUTS 3 dry-contact channels; each channel detects main contact and insertion resistor contact
 TIMING WINDOWS 1-second, 10-seconds, or 20-seconds
 TIMING RESOLUTIONS ±50 micro-seconds @ 1-second duration, ±500 micro-seconds @ 10-second duration, ±1.00 milli-second @ 20-second duration
 TIMING ACCURACY 0.05% of reading ±0.1 ms @ 1-second duration
CONTACT DETECTION RANGE Closed: less than 20 ohms; Open: greater than 5,000 ohm
 RESISTOR DETECTION RANGE 50 – 5,000 ohms
 TRIGGER INPUT VOLTAGE Open/Close: 30 – 300V, DC or peak AC
 VOLTAGE SENSING INPUT RANGE V1: analog input; 0 – 255V, DC or peak AC; Sensitivity: ±1V
V2: voltage presence/absence detector input; 30 – 300V, DC or peak AC
 BREAKER OPERATIONS Initiate Open, Close, Open – Close, Close – Open, Open – Close – Open
 BREAKER INITIATE CAPACITY 30A, 250 Vac/dc max
 INITIATE CURRENT READING RANGE One, non-contact, Hall-effect sensor, 0 – 20 amp range, dc to 5Khz
 TRAVEL TRANSDUCER INPUT 1 digital travel transducer channel; Linear range: 0.0 – 60.0 in (±0.005 in.); Rotary range: 0 – 360 degrees (±0.006 degrees)
 CONTACT TRAVEL POINT DIFFERENCE Measures “slow-close” contact-point distances; results can be printed
CT CURRENT SENSOR One, non-contact, 0 – 100A
 DISPLAY Back-lit LCD screen (240 x 128 pixels); viewable in bright sunlight and low light levels
PRINTER Built-in 4.5-inch wide thermal printer can print both graphic contact travel waveforms and tabulated test results
INTERNAL TEST RECORD STORAGE Stores up to 200 test records and 100 test plans
 COMPUTER INTERFACES One USB port, optional Bluetooth interface
 PC SOFTWARE Windows®-based Vanguard Circuit Breaker Analysis (VCBA S2) software is included with purchase price. Software updates available at no additional charge.
 SAFETY Designed to meet UL/IEC 61010 and CAN/CSA C22.2 No. 1010.1-92 standards
 ENVIRONMENT Operating: -10°C to 50° C (15°F to +122° F); Storage: -30° C to 70° C (-22°F to +158° F)
 OPTIONS Transportation case (available for the DigiTMR S2 and the travel transducers)
 WARRANTY One year on parts and labor
Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F).

Digital Circuit Breaker Analyzer

MODEL: CT-3500 S2

Request a quote

PART NUMBERS

9002-UC [CT-3500 S2]

The Vanguard CT-3500 S2 is the second generation, stand-alone, digital, microprocessor-controlled, circuit-breaker timer. It measures the elapsed time from the instant a breaker coil is energized to the instant of opening or closing of a circuit-breaker’s dry contacts. In addition to timing a breaker’s contact response time, the CT-3500 S2 can also time relays or other switching functions that use an initiating trigger voltage (24-300 Volts DC or AC). The timer-triggering voltage starts three independent electronic timers. Each timer is individually stopped by its respective dry-contact closing or opening. The CT-3500 can fully analyze the timing of all circuit breaker operations (Open, Close, Open – Close, and Close – Open). Timing results are displayed in milli-seconds and cycles on the unit’s back-lit LCD screen and can be printed on the built-in 2.5-inch wide thermal printer.

FEATURES & BENEFITS

  • Detect Main & Insertion Resistor Contacts on same input
  • USB computer interface
  • USB Flash drive interface (Flash drive not included)
  • Store 128 test records internally
  • Initiate Breaker Operation
  • Built-in 2.5″ wide Thermal Printer
  • Rugged “QWERTY” style membrane keypad

TECHNICAL SPECIFICATION

TYPE Portable circuit-breaker analyzer
PHYSICAL SPECIFICATIONS 16”W x 7”H x 13” D (40.6 cm x 17.4 cm x 33 cm); Weight: 14 lbs. (6.4 Kg)
INPUT POWER 100 – 240 Vac, 50/60 Hz
DRY-CONTACT INPUTS 3 channels
TRIGGER INPUT VOLTAGE open/close: 24 – 300 V, DC or peak AC
BREAKER OPERATIONS Open, Close, Open-Close, Close-Open
TIMING RESOLUTION ±0.1 millisecond; accuracy: 0.05% of reading ±0.1 ms
DISPLAY back-lit LCD screen (128 x 64 pixels); viewable in bright sunlight and low light conditions
KEYPAD rugged, 44-key “QWERTY” membrane keypad
PRINTER built-in 2.5-inch wide thermal printer
INTERNAL TEST RECORD STORAGE stores up to 128 timing records
COMPUTER INTERFACE one USB PC interface, one USB Flash drive interface
COMPUTER SOFTWARE Windows® based Breaker Analysis software included with purchase price
SAFETY designed to meet IEC61010 (1995), UL61010A-1, CSA-C22.2 standards
ENVIRONMENT Operating: -10°C to +50°C (+15°F to +122°F)
Storage: -30°C to +70°C (-22°F to +158°F)
HUMIDITY 90% RH @ 40°C (104°F) non-condensing
ALTITUDE 2,000 m (6,562 ft) to full safety specifications
CABLES furnished with full set of test leads (inluding 20-foot contact leads and 30-foot contact lead extensions)
OPTIONS transportation case
WARRANTY one year on parts and labor

CABLES

Cable Part Number
[8000-0005] USB Cable [ 6′ (1.83m) ] 8000-0005
[8000-0016] Power + Ground Combination Cable 8000-0016
[8000-0095] Contact Extension Cable [ 30′ (9.14m) ] 8000-0095
[8000-0096] Contact Test Lead [ 20′ (6.10m) ] 8000-0096
[8000-0098] Trigger Cable [ 15′ (4.57m) ] 8000-0098

250 A Molded Case Circuit Breaker Tester

MODEL: MCCB-250

Request a quote

The Vanguard MCCB-250 is a programmable, high-current source designed specifically for testing molded-case circuit breakers, thermal magnetic and solid-state overload motor-protection relays.

FEATURES & BENEFITS

  • 4 current-source outputs (i.e., 5 A @ 120 Vac, 25 A @ 24 Vac, 120 A @ 6 Vac, 250 A @ 3 Vac)
  • 4-line by 20-character LCD display
  • Provides external current input (0-10 A)

TECHNICAL SPECIFICATION

TYPE 250 Ampere current source
PHYSICAL SPECIFICATIONS 16.8”W x 12.6”H x 10.6”D (42.6 cm x 32.0 cm x 27.0 cm); Weight: 46 lbs (21 kg)
INPUT POWER 100 – 120 Vac or 200 – 240 Vac (factory pre-set), 50/60 Hz
OUTPUT CURRENTS 0 – 5 A @ 120 Vac max;
0 – 25 A @ 24 Vac max;
0 – 120 A @ 6 Vac max;
0 – 250 A @ 3 Vac max;
Instantaneous current: 700A
INTERNAL CURRENT METER 100 mA – 1000 A; Accuracy: 1% of reading ±20mA
MEASUREMENT METHOD Isolated CT
EXTERNAL METER RANGE 10 mA – 10 A; Accuracy: 1% of reading, ±2mA
MEASUREMENT METHOD Isolated CT
TIMER READING RANGE 1ms – 2 hours; Accuracy: 0.1% of reading ±1ms
TIMER STOP INPUTS Voltage input (24V – 300V, DC or peak AC), dry contact input, or removal of primary current
DISPLAY Back-lit LCD Screen (20 characters by 4 lines); viewable in bright sunlight and low-light levels
COMPUTER INTERFACE RS-232C port for factory calibration and diagnostics
SAFETY Designed to meet IEC61010 (1995), UL61010A-1, CSA-C22.2 standards
ENVIRONMENT Operating: -10˚C to 50˚ C (15˚F to +122˚ F); Storage: -30˚ C to 70˚ C (-22˚F to +158˚ F)
CABLES Power cord, ground cable, 10-foot #2 AWG test leads
OPTIONS Transportation case
WARRANTY One year on parts and labor
Specifications are valid at nominal voltage and ambient temperature of +25˚C (+77˚F).

CABLES

Cable Part Number
[8000-0016] Power + Ground Combination Cable 8000-0016
[8000-0086] 10′ (3.05m) Current Cable Set (#4 AWG) 8000-0086
[8000-0089] 10′ (3.05m) Current Cable (#10 AWG) 8000-0089
[8000-0090] Timer + Sense Cable Set [ 10′ (3.05m) ] 8000-0090

Circuit Breaker Accessories

MAKE: Vanguard Instrument

Doble Motion/Travel Transducers

(Include 40’ cable and bag)

  • TR3190 – Digital Combination Rotary & Linear Motion Transducer – adaptable to 80% of current circuit breakers in service today
  • TR3170 – Digital Gold Rotary Transducer – when only a rotary transducer package is necessary
  • TR3171 – Specifically designed for ABB AHMA 4/8 Mechanisms
  • TR3186 – Specifically designed for ABB HMB 4/8 Mechanisms
  • TR3189 – Specifically designed Linear Transducer for ABB HMB 4/8/11 Hydraulic Mechanisms

Mechanical Adapters

The following mechanical adapters are used with the TR3190 Motion/Travel Transducers

  • TR3173 – GE Air Magnetic Adapter (specify 13-kv or 4-kv)
  • TR3174 – GE Air Magnetic Adapter (2000+ amperes)
  • TR3175 – HVB-IPO Adapter with Spacer
  • TR3176 – HVB Ganged Operator Adapter
  • TR3177 – General Purpose Tank Adapter
  • TR3178 – HVB-IPO Spacer
  • TR3179 – GE VB-1
  • TR3180 – ABB HPL Insulator Column
  • TR3181 – ABB HPL Mechanism Cabinet
  • TR3185 – Universal Mechanical Transducer Mounting
  • TR3187 – Bell Crank Translator
  • TR3188 – Alstom T155/2 GIS Breaker



The following mechanical adapters are used with the TR3170 Motion/Travel Transducers

  • TR3172 – Westinghouse SFA
  • TR3182 – GEC HFG SF6
  • TR3183 – Coupling 8mm Internal Thread
  • TR3184 – Westinghouse SF Mechanical Interface
  • TR3185 – Universal Mechanical Mounting Kit
  • TR3187 – Bell Crank Translator



Cables

  • T9940 – Event/Analog Cable Kit (3 shielded analog/3 unshielded event, 28’ total length, w/termination clip kit)
  • T9950 – Analog Cable Kit (6 shielded analog, 28’ total length, w/termination clip kit)
  • T9960 – First Trip Cable and Current Probe Kit (6 shielded analog, 28’ total length, with termination clip kit, 3 -10 A small AC Current Probes and 1 – Doble AC/DC Clip-On Current Probe)
  • T9920 – O.C.B. Cable (60’ total length, longer lengths available)
  • T9930 – E.H.V. Cable Set (60’ total length, longer lengths available)
  • Doble AC/DC Clip-On Current Probe – recording currents on mechanism on analog channels
  • Plug Safety Flag – for utilizing the Record Mode with TDR instruments in place of Safety Switch
  • Heavy Duty Mobile Transportation Cases – available upon request
