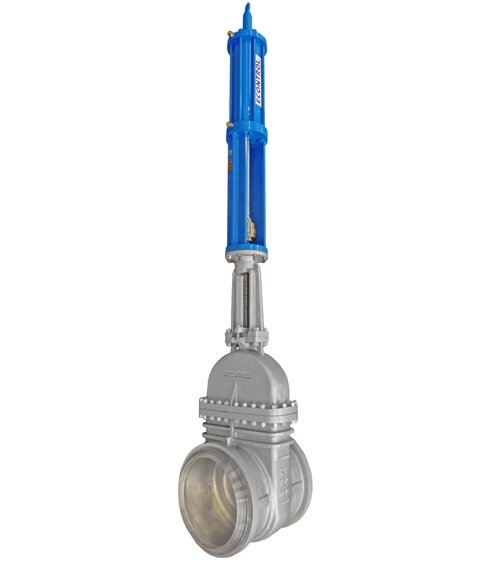

econtrol gate valve
econtrol gate valve2

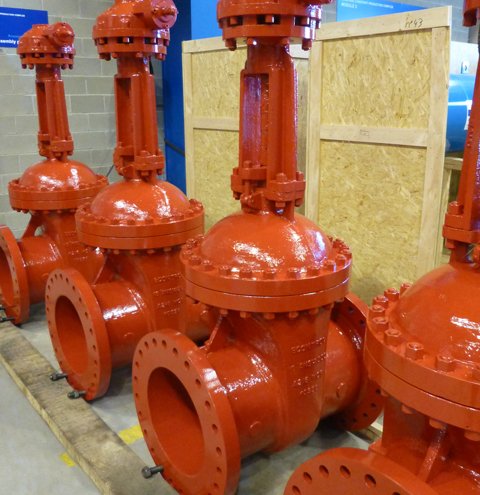

The ECONTROL VG-100 range of gate valves is a comprehensive solution for the oil & gas industry covering all ratings from low to high pressure and high sizes to suite all kinds of customer needs.

Standard features:
• OS & Y type, bolted bonnet.
• Low operating torque.
• Design standard: API 600, testing as per API 6D
• Face to face dimensions as per ANSI B16.10.
• Flange drilling as per ANSI B16.5, RF Serrated.
• Valves with back seat arrangement.
• Deep stuffing box to accommodate more packings.

On-request, optional features:
• Extended bonnet for cryogenic service.
• Locking arrangement.
• Ring joint facings / butt-weld ends.
• Compliance to NACE MR-01-75.
• Charpy V tests.
• Stellited / Hard faces.
• High temperature duty adaptations.
• Cryogenic duty adaptations.
• Jacketed valves.

All valves are offered on manual or actuated version. Electric, pneumatic, hydraulic, electro-hydraulic, pneumo-hydraulic actuation is available. VG-100 valves comply with all API 6D and API 600 standards requirements and are suitable for installation in Emergency Shutdown Systems (ESDV).

Manufactured sizesNPS 1/4″ thru NPS 80″. Higher or special sizes may be developed upon request, please enquiry
Pressure ratingsANSI 150#, ANSI 300#, ANSI 600#. ANSI 900#, ANSI 1500#, ANSI 2500#, ANSI 4500#. Please enquiry for higher or lower ratings
Valve connectionsASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquiry for special connections
StandardizationAPI 6D, API 600, API 602, API 603, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175, GOST, JIS. Please enquiry for other standards
BodyASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations
TrimASTM A216, A105, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations
Seat(s)PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome), TC (Tungsted carbide). Please enquiry for different material configurations
SealingBUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene. Please enquiry for different material configurations

Quam No-Rising Stem Manual Slab Gate - GAV-SMA Series

No rising stem manual slab gate

QUAM manual gate valves

No-rising stem manual slab gate – GAV-SMA series



QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A through conduit slab gate valve no rising stem, with a metal-to metal seal, ideal for both low and high pressures sealing situations.
Bidirectional flow & full bore for versatility.
Compact dimensions suitable for wellhead applications.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options


Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls


Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request


Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam Rising Stem Manual Slab Gate - GAV-SMR Series

Rising Stem Manual Slab Gate - GAV-SMR Series

QUAM manual gate valves

Rising stem manual slab gate – GAV-SMR series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A or API-6D through conduit slab gate valve rising stem with a positive metal to metal sealing (gate-to-seat and seat-to-body).
Bidirectional design provides flow direction versatility.
Manually operated or actuated (pneumatic, hydraulic or electric).
A complete range of materials and connections for all customers’ requests available.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam Pneumatic Actuated gate - GAP-SDV/BDV Series

Pneumatic Actuated gate

QUAM manual gate valves

Pneumatic Actuated gate – GAP-SDV/BDV Series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A and API-6D through conduit slab gate valve with fail safe pneumatic actuator.
A wide range of actuators’ sizes and materials.
A complete range of accessories and control system available.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam Hydraulic Actuated Gate - GAH-SDV/BDV Series

Hydraulic Actuated Gate

QUAM manual gate valves

Hydraulic Actuated Gate – GAH-SDV/BDV Series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A and API-6D through conduit slab gate valve with fail safe hydraulic actuator.
A wide range of actuator’s sizes and materials are available with a complete range of accessories and control systems.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam Rising Stem Manual Expanding Gate - GAV-ERI Series

Rising Stem Manual Expanding Gate

QUAM manual gate valves

Rising Stem Manual Expanding Gate – GAV-ERI Series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A or API-6D through conduit expanding gate valve rising stem with a metal-to-metal seal covering an extensive range of pressures.
Bidirectional sealing & full bore for versatility.
Manually operated or actuated operated (pneumatic, hydraulic, electric).

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam Surface Safety Valve - SSV Series

Surface Safety gate Valve

QUAM manual gate valves

Surface Safety Valve – SSV Series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A surface safety gate valve made of a top quality reverse acting gate valve with hydraulic actuator.
The operating media is hydraulic fluid supplied by a self-contained control system with manual pump for SSV valve opening and PSHL pressure pilots for emergency safety closing.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam Line Pressure Operated Gate - LPO Series

Line Pressure Operated Gate

QUAM manual gate valves

Line Pressure Operated Gate – LPO Series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A line pressure operated surface safety gate valve made of a top quality reverse acting gate valve with hydraulic actuator.
The operating media is flow-line fluid supplied through a velocity check valve for SSV valve opening and PSHL pressure pilots for emergency safety closing.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds

Quam No-Rising Stem Manual Expanding Gate - GAV-EMA Series

No-Rising Stem Manual Expanding Gate

QUAM manual gate valves

No-Rising Stem Manual Expanding Gate – GAV-EMA Series

QUAM Gate Valves issued from an Heavy Duty Design with Easy Maintenance to achieve the High Reliability and the long–life service requested by Oil & Gas Applications.

API-6A through conduit double expanding non rising stem with a positive metal-to-metal sealing (gate-to-seat and seat-to-body).
Bidirectional flow & full bore for versatility.
Compact dimension suitable for wellhead applications.

Features
API-6A and API-6D design
Slab or double expanding gate through conduit style
Wear resistant trim
Extensive range of body/trim materials and options

Benefits
Short delivery times
Long life service
Easy maintenance
Fully customizable in actuation & controls

Pressure ratings
From ANSI 150 through API 15000 PSI
End connection sizes
Flanged from 1 13/16” through 20”
Other ends connections available on request

Actuation options
Manual override
Pneumatic / Hydraulic – single acting
Pneumatic / Hydraulic – double acting
Electro-hydraulic
Electric
SSV Surface Safety Valve

Applications

Wellheads, Production, Drilling, Water injection, Gas lift,
Blowdown
Can be installed on Christmas trees, choke and kill
manifolds
