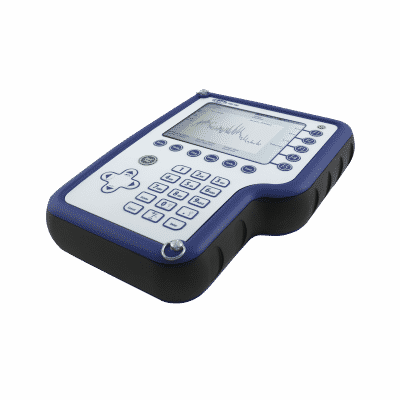

PORTABLE PARTIAL DISCHARGE ANALYZER
Partial Discharge Surveyor
MODEL: PDS100
The Doble PDS100 Partial Discharge Surveyor is a radio frequency interference (RFI) surveying tool that is designed for partial discharge measurement in a live substation.
Without the need for outages, the PDS100 can detect partial discharge (PD) in just a few seconds – making it an ideal tool for a condition based maintenance program.
Whole substations can be quickly surveyed and analyzed by simply walking around HV apparatus and using the PDS100 to detect and identify sources of PD and external interference.
FEATURES
- Uses RFI technology to identify and locate defects
- Detect harmful PD by the electromagnetic energy emitted from the area of activity
- Compare reference baseline to readings from inside the substation
- Spectrum and time modes
- Store recordings in the instrument and later transfer to a PC for further analysis with PDViewer software
- Rugged, light-weight, hand-held instrument
- Works with a variety of sensors, probes and antennae for various applications
BENEFITS
- Safe and effective method for PD detection
- Non-invasive inspection method for substation surveys
- Use on a daily basis or during routine substation inspections together with other methods such as infrared scanning
- Cost-effective way to include PD detection in your condition based maintenance program

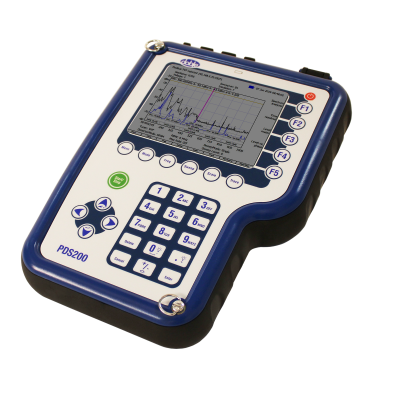

PD Surveyor with EMI Capabilities
MODEL: PDS200
The Doble PDS200 Surveyor is a partial discharge surveyor tool with EMI capabilities. It identifies and analyzes radio frequency (RFI) and lower frequency electromagnetic (EMI) emissions. These are associated with faulty or degraded insulation and other system defects.
The PDS200 uses EMI analysis to discriminate between different defects and discharge sources in transformers, cable terminations, high-voltage substation and plant equipment.
Use the PDS200 to quickly make a system wide survey.
The PDS200 connects with a variety of sensors for various applications. It can be purchased on its own or as part of a packaged kit.
FEATURES
- Easy to use, handheld device with large display screen
- Captures the electromagnetic emissions in the RFI and EMI spectrum and displays a “fingerprint” of the defect causing the radiation
- Select measurement parameters to maximize sensitivity to emissions
- Synchronize signal capture to the power cycle to facilitate phase resolved PD analysis
- Connect to a variety of sensors (HFCTs, probes, directional antenna) for different applications
- Synchronous sampling and display of detector outputs provides discrimination of telecommunication carriers, noise and discharge phenomena
- Logging of key parameters for trending of emissions
BENEFITS
- Quickly perform surveys without costly outages
- No physical connections to the unit under test; detection method is truly non-invasive
- Safe, effective method to detect insulation and mechanical defects
- Immediate trending of measurements
- Record and analyze the emissions to make decisions for further actions

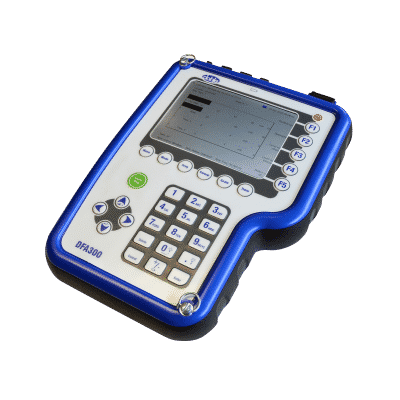

RFI & Acoustic Signal Surveyor
MODEL: DFA300
Use the Doble DFA300 to identify and locate insulation defects.
This surveying tool combines radio frequency interference (RFI) and acoustic emission (AE).
The DFA300 partial discharge detector can locate partial discharge (PD) in a few seconds.
Designed for surveying live, high voltage apparatus, its versatility makes it the perfect, multi-purpose tool for condition-based maintenance programs.
FEATURES
- Combination tool uses both RFI and acoustic technology
- Registers RFI from apparatus with insulation problems including PD and arcing
- Locate and diagnose internal problems using the acoustic sensor on grounded surfaces
- Easy to use, handheld device with large display screen
BENEFITS
- Perform non-invasive surveys of critical assets
- Identify and locate insulation defects in gas insulated and open air substations, transformers, instrument transformers and cable terminations
- Convenient tool for daily use or routine substation surveys along with thermography

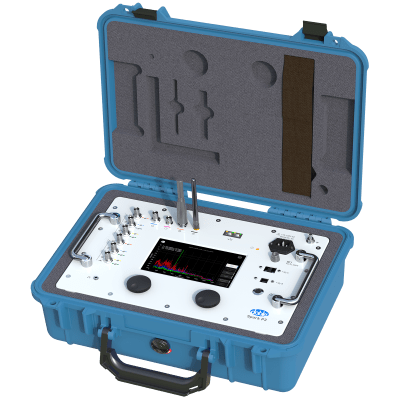

Doble Spark P3 is a universal partial discharge (PD) and electromagnetic interference (EMI) analyzer that uses a software defined radio signal detector to identify characteristics of insulation system deterioration that could lead to the failure of high voltage equipment. It detects signals from suitable sensors in a frequency range between 9 kHz to 2 GHz for PD and EMI, and DC to 500k Hz for acoustic and reference voltage measurements.
An automatic classification system enables users of all experience levels to easily distinguish partial discharge activity from nuisance signals and classify different types of PD/EMI defects in high-voltage apparatus, including:
- Rotating machines (PD couplers, HFCT sensors)
- Power transformers (HFCT sensors, UHF antennas, acoustic microphones)
- Instrument transformers (HFCT sensors)
- Switchgear (GIS and AIS – TEV sensors, UHF antennas, HFCT, acoustic sensors, spacer
sensors, window sensors) - Cables and accessories (HFCT, UHF sensors, acoustic sensors)
Features
- Automatic signal fault classifier
- Universal detector applicable for most PD testing scenarios
- Guided mode for minimum operator training requirements
- Freely configurable and pre-set test plans for any application and automatic data acquisition
- Battery operated benchtop (lab) or Pelicase (site), 19inch rack-mount adapter available
Benefits
- Signal classification algorithm helps inexperienced operators obtain reliable results
- Guided measurements
- Automatic measurements and test plans (can be edited)
- Suits most PD/EMI applications
- Lightweight battery operated device (suitable for cabin and hold air travel)

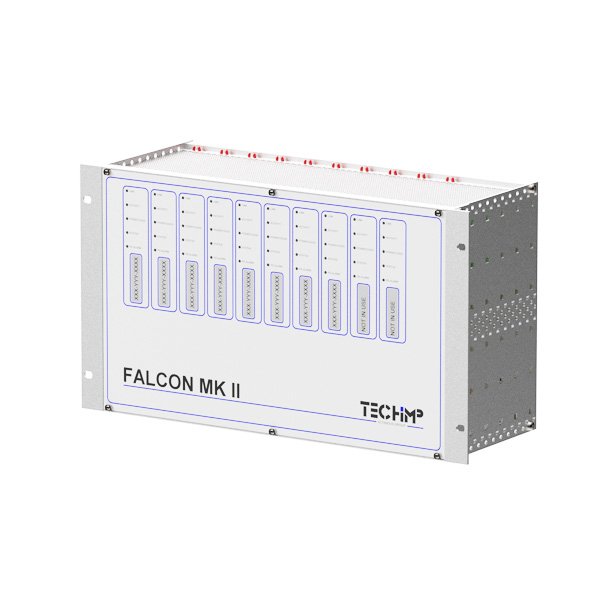

FALCON MKII System is a comprehensive solution to monitor Partial Discharge, enclosure contact temperature, and humidity, designed to monitor large clusters of switchgear.
Benefits
- Comprehensive solution to monitor Partial Discharge, enclosure contact temperature, and humidity
- Designed to monitor large clusters of switchgear
- Non-intrusive
- Centralized installation
- Ultra-Wide Band, fast integrated processing capability
- Automatic partial discharge data acquisition and analysis
- Reliable alarms based on the trending of every phenomenon acquired
Characteristics
Falcon MKII is a Partial Discharge acquisition instrument for Medium Voltage electrical assets. The device can acquire, elaborate and store partial discharge signals coming from the field. The instrument is modular and up to 40 channels can be hosted in a standard 19” rack mount 6U module, to monitor up to 20 switchgears in a MV substation. Falcon MKII acquires full signal waveforms and it process them exploiting the patented T/F-Map technology, able to increase the signal to noise ratio and to separate different signal sources.
FALCONTM is representing the latest state of the art technology for partial discharge monitoring (PDM) of MV assets, combining proven and patented technology from HV asset monitoring with economic requirements. FALCONTM is acquiring and processing high frequency PD signals locally detected by the sensors to which it is connected, whether inductive (HFCT), capacitive (TEV).
Benefits
- Economical solution for continuous monitoring of partial discharge in Medium Voltage equipment
- Novel approach to the continuous monitoring of the PD
- Automatic acquisition and elaboration of PD data
- Patented T/F-map technology
- Efficient separation of different discharge activities
Characteristics
FALCONTM provides an economical solution for continuous monitoring of partial discharge in Medium Voltage equipment that allows to determine the deterioration if the insulation and thus, the eventual worsening of the health condition of the electrical asset before fatal breakdown. FALCON proposes a novel approach to the continuous monitoring of the PD phenomena occurring on an integrated network of Medium Voltage equipment.
Such approach is implemented by addressing the solutions to the requirements of the Medium Voltage grids in terms of non-invasive, low cost and fully automatic PD data acquisitions and elaboration, with the relevant assessment of the conditions of the Medium Voltage equipment.
With onboard computing power and data storage combined with a web-browser interface, the unit can be reached from anywhere in the network allowing to analyze PD data and historic trends with very low data traffic. Easy installation and auto-setting reduces significantly installation times. FALCON provides automatic acquisition and elaboration of PD data, as well as automatic noise rejection and the recognition of the increasing PD trend.
FALCONTM incorporates patented T/F-map technology. The hardware is provided with ultra-wide bandwidth acquisition system, which collects both PD pulse peak and phase, as well as PD pulse waveforms. The pulse waveform allows the information coming from the pulse shape to be employed. Per each acquired pulse the acquisition unit automatically calculates its time and frequency content, building the so called “T-F map”.
Ultimate solution for industrial monitoring

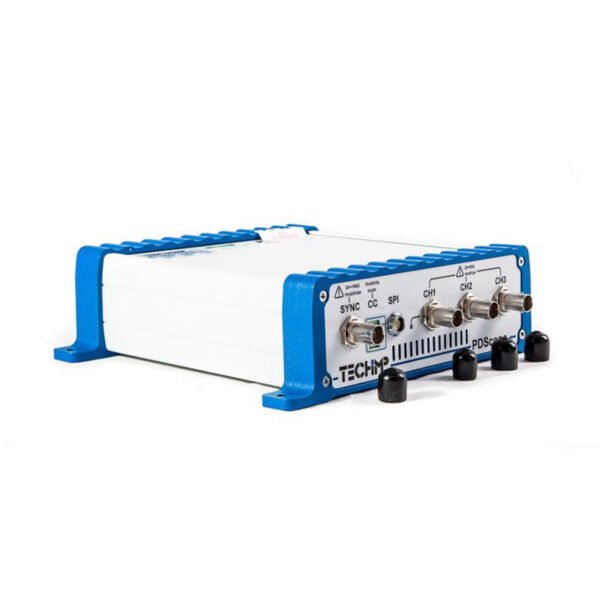

The PDScopeTM is a part of the PDCheckTM family and particularly designed to be an integral part of TECHIMP’s monitoring systems.
Integrated into TECHIMP’s PDHubsTM, the PDScopeTM is a powerful PD analyzer based on Techimp TF Map technology (patented) allowing preliminary noise rejection and automatic calculation of statistical parameters relevant to Partial Discharges through its high resolution and fast sampling rates.
The PDScopeTM is the ideal device for PD Monitoring of HV Cable, Generators, GIS, MV cable and switchgear as well as transformers.
Benefits
- Enhanced diagnostic capability, automatic noise rejection based on Techimp TF Map patented technology
- UWB Technology with 16kHz to 30MHz and 10bit resolution
- Remote controllable from Intranet/Internet
- Built-in double fiber optic and Ethernet 10/100 Mb/s interface
- Stand-alone capability
Characteristics
Techimp patented technology allows different PD phenomena to be classified on the basis of their pulse shape, so that further analysis can be carried out on each dataset, separately. This enhances the likelihood of PD source identification, even in the absence of a skilled operator.
Techimp acquisition technology also provides efficient noise rejection. As a matter of fact, noise signals have been observed to be very different from PD signals. Therefore, Techimp classification system can be successful in separating the contributions of PD from those generated by disturbances. Specifically, each PD pulse waveform is acquired and the so-called equivalent time-length and bandwidth are evaluated and plotted on the TF map.
Different types of discharges (e.g. PD due to distributed microvoids, slot discharges and noise in a rotating machine) shall group into different clusters in the TF map being characterized by different pulse shapes.
Ultimate solution for transformer monitoring

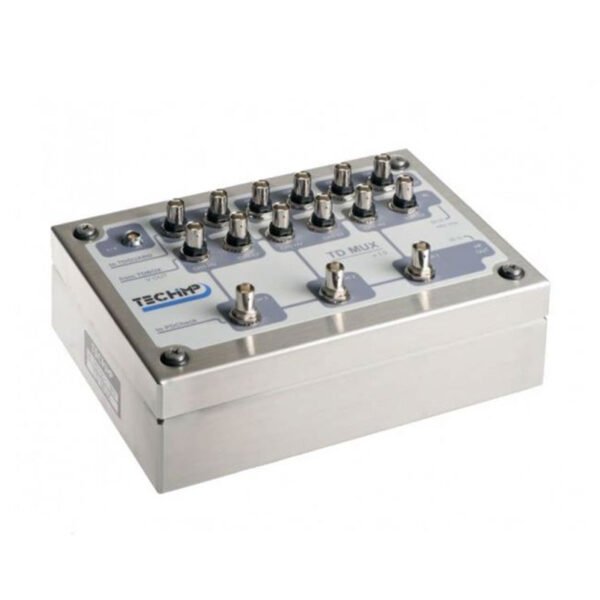

TD GuardTM Intelligent Sensor is an on-line CONTINUOUS Capacitance and tan-δ monitoring system for transformer bushings.
The TD GuardTM Intelligent Sensor is providing absolute Tan-δ measurement in on-line permanent monitoring of transformer bushings, granting the best level of diagnostic leverage and reliability.
Benefits
- Innovative instrument for Capacitance, Tan-δ and Δtan-δ recording, storage & processing
- Zero drifts, innovative design for high thermal stability levels without drifts
- Fast response and accuracy
Characteristics
TD Guard Intelligent Sensor consists of a microprocessor-controlled unit supporting sophisticated sensors and conditioning front end. Fiber optic interfaces allow data download by a standard PC or a server able to record values of Δtan-δ (relative measure) and Capacitance and threshold setting.
TD GuardTM has the capability to present two alarm levels, according to a traffic-light approach, using the dedicated LED front lights or activating external alarms media by dry contact interface.
False alarms are avoided through advanced signal processing and field-proven algorithms able to eliminate the effect of noise or other environmental conditions that could lead to wrong diagnosis and inappropriate corrective actions.
TD GuardTM implements transformer bushing’s on-line monitoring through Capacitance and relative Δtan-δ measurement. Smart sensing algorithms are applied to obtain fast response and accuracy.
This intelligent sensor is designed to be used with TECHIMP PD analyzer, as the PDCheck unit and any DGA, providing Global diagnostic coverage and, thus, superior failure prevention. It may also be used as a stand alone device to get basic alarms on programmable threshold levels.

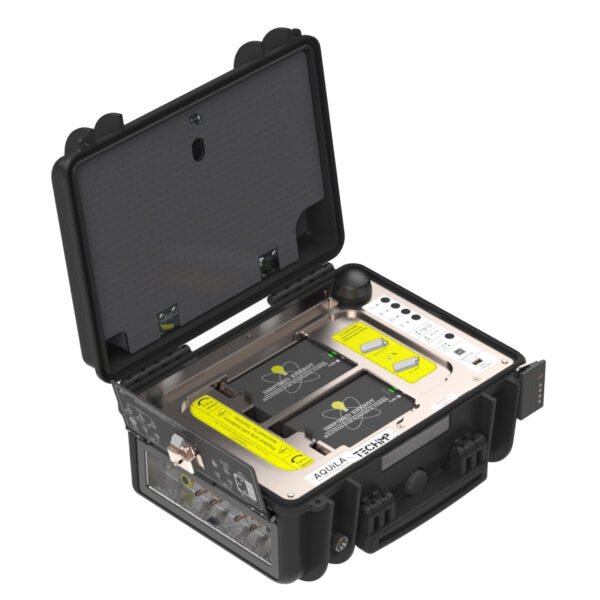

A compact and portable Partial Discharge acquisition unit, which allows to detect and analyze partial discharge activities in all electrical assets: from power cables to transformers, rotating machines and switchgears, together with the right combination of sensors and accessories. AQUILA comes with a full range of options, ideal for field testing.
Benefits
- One device for condition-based maintenance of HV and MV cables, transformers, rotating machines and switchgears
- Innovative instrument for Partial Discharge testing (recording & processing)
- Ultra-Wide Band, fast integrated processing capability
- PD Pulse detector and waveform analyser
- Multiple Connectivity (Wi-Fi, Fibre Optics, USB, Bluetooth)
- NEW PD Pro software – the integrated software for Partial Discharge testing and reporting – IEC60270 compliant
- TECHIMP’s patented T/F Map technology able to differentiate between noise signals and different multiple PD signals.
Characteristics
AQUILA can be used to perform on-line and off-line PD assessments on all electrical asset of any voltage level. Thanks to the simple and fast setup, the unit allows to perform detailed and accurated acquisitions that can be analyzed immediately or saved for further analysis.
Techimp’s AQUILA is able to stand up to 8 hours of full working conditions in a monitoring session. It can also be used as a power supply source and battery recharging unit for laptops, increasing the efficiency and the effective measuring time of a PD monitoring session, relieving customer for the need of external power supplies.

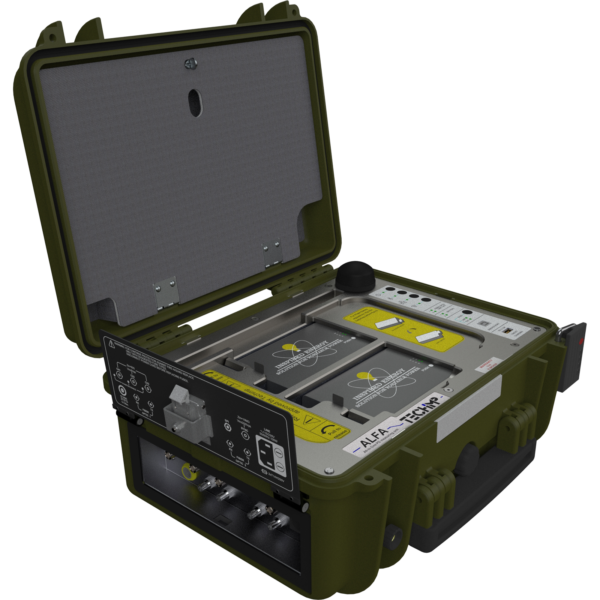

PD testing device for our Licence Partners
Get started immediately with PD testing.
The ALFATM has been developed for service departments or companies with limited skills in the field of interpretation of PD data. With little effort in training of your staff, you will shortly be able to take PD measurements on your customers assets. With the data sent to our specialists you will receive a comprehensive analysis in return.
Like its big brother AQUILATM, the alfaTM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD testing device for all assets like transformer (HV & MV), cable (HV & MV), rotating machines (generators and motors) as well as switchgear (air- or gas-insulated)
Benefits
- One for All: one device for all assets like cables, transformers, rotating machines and switchgears
- Innovative instrument for Partial Discharge recording
- Ultra Wide Band, fast integrated processing capability
- Compact PD Pulse detector
- Multiple Connectivity (Wi-Fi, Fiber Optics)
- Automatic PD Data acquisition procedure, simple & user-friendly, no expertise needed.
The design of ALFA is influenced by many years of field experience. It can cope with the toughest outdoor conditions while taking measurements on any electrical asset. The batterypowered unit allows testing activities for up to 20 hours without auxiliary power available. The setup of the unit is simple and fast allowing for taking measurements within minutes.

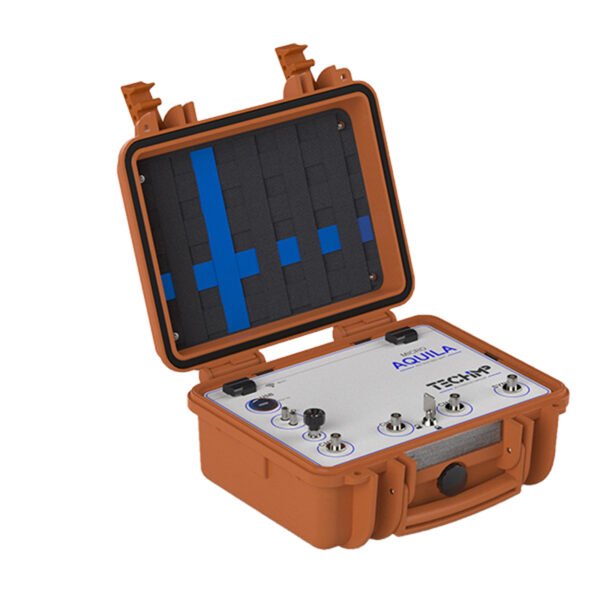

MicroAQUILA Ultimate Portable Solution For PD Assessment
MODEL: MicroAQUILA
MAKE: Altanova
MicroAquila is a Highly flexible and reliable instrument for Partial Discharge (PD) diagnostic campaigns, a practical all-in-one instrument, equipped with all you need for a complete PD assessment.
Benefits
- Partial Discharge Testing for ALL assets, like MV and HV cables, Power and Distribution Transformers, Motors and Generators, GIS and MV Switchgear, together with the right combination of sensors and filters
- Online Testing at any voltage level while equipment is in service
- Offline Testing with connection to 50/60Hz Generator.
- Innovative& Patented software T/F-Map for Partial Discharge recording and advanced analysis.
- Ultra Wide Band, fast integrated processing capability.
- Connection by Wi-Fi and F/O
- Independent power supply by power bank
Techimp’s Partial Discharge (PD) Monitoring systems usually consists of a Central Unit and distributed Data Acquisition Units – the PD Hub™ – able to acquire and process the PD signals locally detected through PD sensors installed on each of main electrical assets (generator, transformer, HV cables and GIS).
Per each set of three (03), six (06), nine (09) or twelve (12) PD sensors, one PD Hub™, consisting of an Acquisition Unit (PDCheck™ or PDScope™) housed in an IP65 Acquisition Box, will be installed close to the asset under monitoring.
The PD Hub™ will collect the partial discharge signals (high frequency signals) coming from the sensors. A fibre optic communication network will connect all PD Hubs™ to the Central Unit placed in the Control Room, where the partial discharge data will be collected, stored and processed.
The PD Hub™ can also be installed as a standalone device for permanent monitoring of the asset while data are stored internally and are available for download at any time for detailed evaluation.
The PD Hub™ is also available in IP68.

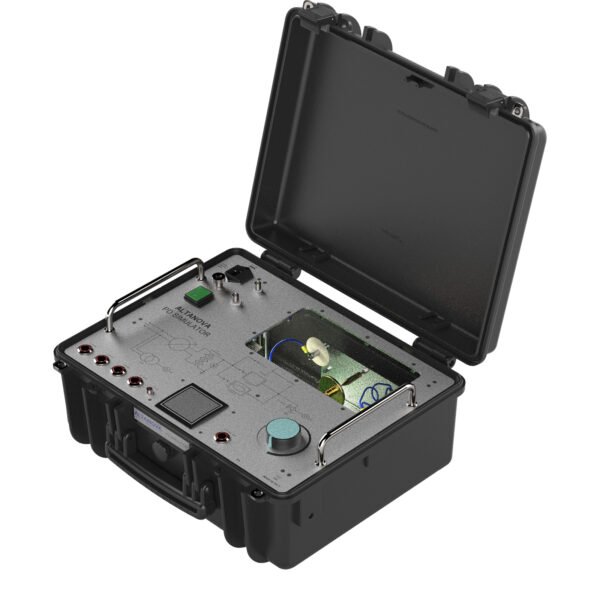

TECHIMP’s PD Simulator is a portable device designed to demonstrate typical partial discharge phenomena (corona, superficial, internal) present in all MV and HV electrical assets.
Benefits
- Real time simulation of different PD phenomena
- Easy education tool
- Continuous training
Characteristics
Three internal specimens (internal, corona and surface PD) can be activated individually or simultaneously for a more complete analysis. An internal high frequency noise generator can be added (ON/OFF) to simulate disturbances as present in the field for more realistic test, as well as to highlight filtering potentials using TECHIMP’s T/F map. TECHIMP’s PD Simulator has an integrated HFCT sensor which can be connected to TECHIMP’s portable PD Analyzer AQUILA or any other PD instrument, for partial discharge measurement and analysis. Synchronization of the signal is automatically provided.

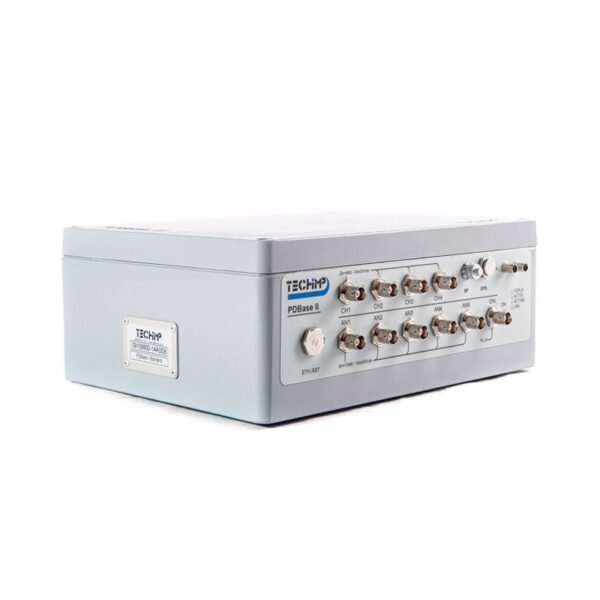

PDBASE II Acquisition Unit For Research And Quality Control
MODEL: PDBASE II
MAKE: Altanova
PDBaseII has been expressly designed for the needs of a researchlab or for quality control. The PDBaseII is equipped with an ultra-wide band digitizer and integrated processing capabilities. With its fast sampling rate (200 MS/s) and its on-board processing capabilities, a considerable number of digitized PD pulse waveforms are analyzed and pulse features are stored for a further processing leading to the final PD source identification
PDBase IITM is provided with different acquisition modes to give maximum measurement flexibility. It is able to perform PD tests within a broad frequency range for various applications.
PDBase IITM takes advantage of three main acquisition modes: 2 diagnostic and one standard. In standard mode a hardware filter (integrated in the system) narrows the band of the system, thus complying the requirements of IEC60270 STD
The PDBase IITM acquisition software holds all the needed functions to control the instrument, to set the correct acquisition parameters, to acquire and visualize the PD dataset in order to get an immediate diagnostic response.
PDProcessing and Quality Control add-on are software that allow the acquired data files to be processed for a deep analysis of the detected phenomena.
Benefits
- Innovative instrument for Partial Discharge recording & processing
- Ultra Wide band, fast integrated processing capability
- Up to 6 PD Channels
- Powerful, PD Pulse detector and Waveform analyzer
- Fuzzy logic diagnostic tools and statistical processing
- IEC 60270 compliant
