BW Technologies Portable Gas Detectors
Mono Gas Restorable

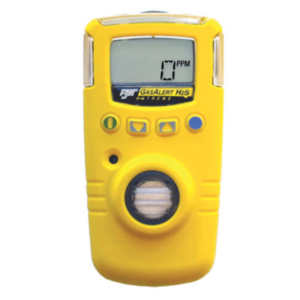

GasAlert EXTREME
Portable single gas detectors for personal safety, available for detection of various gases (H2S, CO, O2, SO2, NH3, PH3, Cl2, ClO2, NO2, NO, HCN, ETO, O3)
Long-term solution
Designed with durability and comfort in mind, the GasAlert Extreme reliably monitors for any single gas hazard within its wide range of available toxic gas models. With easy on/off operation, this single gas detector offers extended longevity with a two year field-replaceable battery and sensor.
Calibration is a simple automatic procedure and is compatible with BW’s MicroDock II automatic test and calibration system.
A wide range of user options, multilanguage display and datalogging functionality make the GasAlert Extreme an ideal solution for many applications.
GasAlert Extreme Specifications
Size- 1.1 x 2.0 x 3.75 in. / 2.8 x 5.0 x 9.5 cm
Weight- 2.9 oz. / 82 g
Alarms-
– Visual, vibrating, audible (95dB)
– Low, High, STEL, TWA
Tests- Sensor integrity, circuitry, battery and audible/visual alarms
on activation, battery (continuous)
Pump- Compatible with the Sampler motorized pump
Typical battery life- 2 year battery life (typical) with replaceable 3V battery
User options-
Confidence beep
Latching alarms
Stealth mode
Passcode protection
Automatic O2 calibration
Automatic backlight
User-settable calibration gas level
Calibration past due lockout
Language choices (five)
Ratings- EMI/RFI: Complies with EMC Directive 89/336/EEC IP 66/67
Certifications and approvals-
Class I, Div. 1, Gr. A, B, C, D
Class II, Div. 1, Gr. E, F, G
American Bureau of Shipping
ATEX: II 1 G T4
Ex ia IIC T4
IECEx: Ex ia IIC T4
: European Conformity
Warranty- Full two year warranty including sensors
(One year NH3, Cl2, O3, ETO, ClO2 sensors)
BENEFITS
•Direct, real-time readings on large LCD
• Operates through consecutive shifts—exceptional battery run-time
• Secure and accurate history with datalogging
Standard features of BW products:
• Continuous LCD shows real-time gas concentrations
• Compact and lightweight design makes it comfortable to wear
• Water-resistant
• Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
• Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
• Bright wide-angled visual alarm bars
• Built-in concussion-proof boot
Additional GasAlert Extreme features:
• Equipped with internal vibrating alarm for high noise areas
• Secure and accurate history with datalogging
• Multi-language support in English, French, German, Spanish and Portuguese
• Tamper-proof settings with passcode protection
MicroDock II compatible
Concussion-proof boot
SamplerPak motorized pump
IR DataLink
For a complete list of accessories, please see Accessories page
LEAK DETECTOR EZ SENSE
The most economical solution to detect leaks of Methane, Propane, Butane, LPG and Natural Gas. Compact and very light, just approach it to the possible gas leak to intercept it. Acoustic alarm and yellow or red LED display for different levels of gas alarm. It does not need calibration.
Detecting natural gas, propane, butane, LPG and LNG has never been so ez
ez sense is the most convenient way to detect natural gas, propane, butane, LPG and LNG. It is compact and light on the pocket in more ways than one.
ez sense utilises a catalytic bead sensor which requires absolutely no calibration to individual gases or fuel types – simply point and click!
It is suitable for identifying the source of leaks in pipes, fittings, valves, gas storage tank/ cylinders and hot water heaters.
This product is also an opportunity to quickly inform your customers as to the source and size of a leak and undoubtedly provide some peace of mind at the same time.
FEATURES & BENEFITS
Ez to use
Simply check the suspected area by pointing ez sense close to the source. If gas is present the alarm will sound and the yellow LED or the red LED will light up according to the concentration of gas. It couldn’t be simpler.
Ez to test
ez sense can be tested quickly and easily by releasing a small amount of gas (butane) in a well ventilated area. The alarm should sound and the yellow or red LED light will come on.
Ez to look after
ez sense doesn’t react well to water – it will damage the instrument. So please keep it in a dry environment.
Also avoid using it in areas of high humidity. If, for any reason, ez sense is redundant for several weeks, it is advisable to remove the batteries to prevent any corrosive damage.
