SELF-ACTING TEMPERATURE CONTROL VALVES

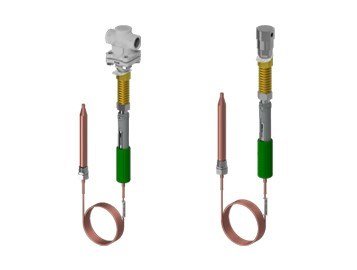

Valsteam self-acting temperature control valves - tr25-00

TR

The TR valves series were designed for direct-acting temperature control systems where the valve closes on temperature rise. They are single seated, in order to ensure an excellent tightness and are intended to be coupled with the thermostat models T.205 and T.405. The liquid filling the thermostat expands when the temperature levels of the fluid being heated rise, closing the valve. These valves are used for controlling the temperature in central heating systems, district heating systems and industrial plants.

Sub Models

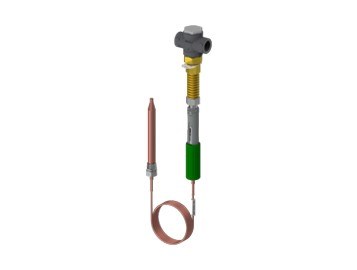

TR25S | DN 15 - 25
TR25S | DN 15 – 25

MATERIAL

Carbon steel

SIZES

1/2” to 1”

CLOSING FORCE

Up to 400 N

CONNECTIONS

Female threaded ISO 7 Rp

CAPILLARY LENGHTS

3 m as standard

RATING

PN 40

THERMOSTAT RANGES

0 to 160 ºC

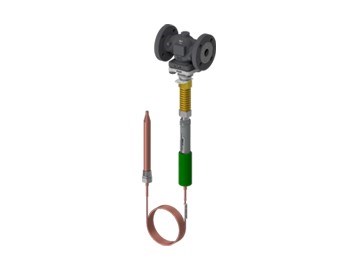

TR40 | DN 15 - 25
TR40 | DN 15 – 25

MATERIAL

Carbon steel or stainless steel

SIZES

DN 15 to DN 25

CLOSING FORCE

Up to 400 N

CONNECTIONS

Flanged EN PN 40

CAPILLARY LENGHTS

3 m as standard

RATING

PN 40

THERMOSTAT RANGES

0 to 160 ºC

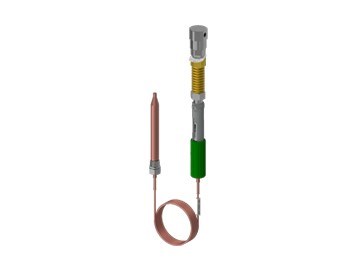

TR25SS | DN 08 - 10
TR25SS | DN 08 – 10

MATERIAL

Stainless steel

SIZES

1/4” to 3/8”

CLOSING FORCE

Up to 200 N

CONNECTIONS

Female threaded ISO 7 Rp

CAPILLARY LENGHTS

3 m as standard

RATING

PN 40

THERMOSTAT RANGES

0 to 120 ºC

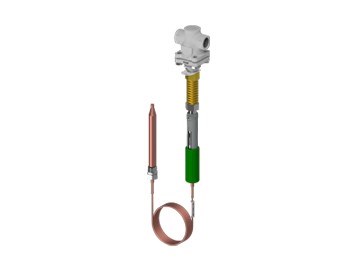

TR25SS | DN 15 - 25
TR25SS | DN 15 – 25

MATERIAL

Stainless steel

SIZES

1/2” to 1”

CLOSING FORCE

Up to 400 N

CONNECTIONS

Female threaded ISO 7 Rp

CAPILLARY LENGHTS

3 m as standard

THERMOSTAT RANGES

0 to 160 ºC

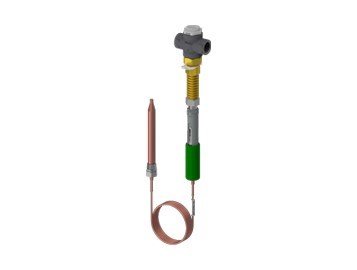

valsteam self-acting temperature control valves - tr25r

TR25/R

The TR25/R valves series are designed for temperature control of cooling systems where the valve opens when the temperature rises. They are single seated, in order to ensure an excellent tightness, and are intended to be coupled with thermostat models T.205 and T.405. The liquid filling the thermostat expands when the temperature levels of the fluid being cooled rise, opening the valve

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CLOSING FORCE

Up to 400 N

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN 40
Flanged ASME Class 150 or 300

CAPILLARY LENGHTS

3 m as standard

THERMOSTAT RANGES

0 to 160 ºC
